72-inch StorEdge Expansion Cabinet
RETMA Rail Mounting Screw Size #10-32
Go to SG-XARY030A
Go to SG-ARY080A
SG-ARY030A |
SG-ARY040A |
596-2305 |
596-2990 w Flat Front Door w 2 Fan Trays |

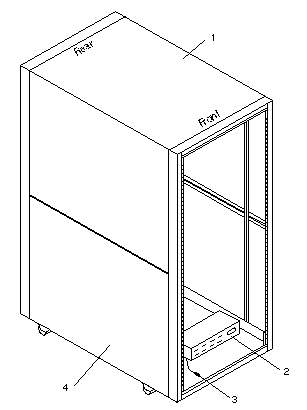

Table Legend |
[F] = Field Replaceable Unit (FRU)
NS = Not Shown |
CODE |
PART # |
DESCRIPTION |
1 1 1 |
596-2305 540-3707 370-3406 |
72-inch Cabinet Option SG-ARY030A
72-inch Cabinet Assembly
72-inch Cabinet |
1 1 1 |
596-2990 540-3707 370-3406 |
StorEdge T3 72-inch Cabinet Option SG-ARY040A
72-inch Cabinet Assembly
72-inch Cabinet |
2 |
300-1393 [F] |
Universal Power Sequencer |
3 |
370-3547 [F] |
Keyswitch |
4 |
340-4939 |
Side Panel |
NS |
180-1954 [F] |
Power Cord, NEMA L6-30P to Han 6HsB |
NS |
180-1955 |
Power Cord, Blue 32A IEC 309 to Han 6HsB |
NS |
180-2059 [F] |
Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB |
NS |
180-2064 [F] |
Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB |
NS |
330-2610 |
1U Filler Panel |
NS |
330-2611 |
2U Filler Panel |
NS |
330-2612 |
2U Power Sequencer Keyswitch Filler Panel |
NS |
330-2613 |
3U Filler Panel |
NS |
330-2614 |
4U Filler Panel |
NS |
330-2615 |
5U Filler Panel |
NS |
330-2616 |
1U Trim Strip |
NS |
330-2617 |
2U Trim Strip |
NS |
330-2618 |
3U Trim Strip |
NS |
330-2619 |
4U Trim Strip |
NS |
330-2620 |
5U Trim Strip |
NS |
340-4471 |
Sequencer Mounting Bracket |
NS |
340-4472 |
Sequencer Mounting Bracket |
NS |
340-4624 |
Hinged Rear Panel |
NS |
340-4940 |
Rear Door Assembly |
NS |
370-4342 [F] |
Rack Stabilizer FRU Kit |
NS |
370-3592 [F] |
IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
None |
Y IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
370-3675 |
Flat Front Door for A5x00, Option X9818A |
NS |
540-5208 |
Curved Front Door, Option EXP-FRTDR-070 |
NS |
530-2369 [F] |
Keyswitch Cable Extension, Dual Sequencers |
NS |
530-1619 [F] |
Ground Cable |
NS |
530-2236 [F] |
Fan Tray Status Cable, 3.2M |
NS |
540-3887 [F] |
AC Fan Assembly, Option X9819A |
|
805-3067 |
Installation and Service Manual |
Note: The caster, rack foot, side cover, and top cover do not have part
numbers. Kit 370-4342 includes left/right slide rails, 3/8-16 × 2"
slide rail feet, 10-32 × 1/2" retaining screws, and 1/4-20 shoulder
screws.
72-inch StorEdge Expansion Cabinet
RETMA Rail Mounting Screw Size #10-32
Table Legend |
[F] = Field Replaceable Unit (FRU)
NS = Not Shown |
CODE |
PART # |
DESCRIPTION |
1 1 1 |
595-4706 540-3707 370-3406 |
72-inch Cabinet Assembly (595-4706-01)
72-inch Cabinet Assembly (replaced by 540-6290 07/30/04)
72-inch Cabinet |
1 1 - - - |
595-4706 540-6290 180-2007 300-1718 370-3406 |
72-inch Cabinet Assembly (595-4706-02)
72-inch Cabinet Assembly with Power Strips
10A IEC 320 Sheet E to IEC 320 C13 Power Cord, 1M (×22)
42 Outlet Power Strip (×2)
72-inch Cabinet |
2 |
300-1393 [F] |
Universal Power Sequencer |
3 |
370-3547 [F] |
Keyswitch |
4 |
340-4939 |
Side Panel |
NS |
180-1954 [F] |
Power Cord, NEMA L6-30P to Han 6HsB |
NS |
180-1955 |
Power Cord, Blue 32A IEC 309 to Han 6HsB |
NS |
180-2059 [F] |
Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB |
NS |
180-2064 [F] |
Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB |
NS |
330-2610 |
1U Filler Panel |
NS |
330-2611 |
2U Filler Panel |
NS |
330-2612 |
2U Power Sequencer Keyswitch Filler Panel |
NS |
330-2613 |
3U Filler Panel |
NS |
330-2614 |
4U Filler Panel |
NS |
330-2615 |
5U Filler Panel |
NS |
330-2616 |
1U Trim Strip |
NS |
330-2617 |
2U Trim Strip |
NS |
330-2618 |
3U Trim Strip |
NS |
330-2619 |
4U Trim Strip |
NS |
330-2620 |
5U Trim Strip |
NS |
340-4471 |
Sequencer Mounting Bracket |
NS |
340-4472 |
Sequencer Mounting Bracket |
NS |
340-4624 |
Hinged Rear Panel |
NS |
340-4940 |
Rear Door Assembly |
NS |
370-4342 [F] |
Rack Stabilizer FRU Kit |
NS |
370-3592 [F] |
IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
None |
Y IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
370-3675 |
Flat Front Door for A5x00, Option X9818A |
NS |
540-5208 |
Curved Front Door, Option EXP-FRTDR-070 |
NS |
530-2369 [F] |
Keyswitch Cable Extension, Dual Sequencers |
NS |
530-1619 [F] |
Ground Cable |
NS |
530-2236 [F] |
Fan Tray Status Cable, 3.2M |
NS |
540-3887 [F] |
AC Fan Assembly, Option X9819A |
|
805-3067 |
Installation and Service Manual |
Note: The caster, rack foot, side cover, and top cover do not have part
numbers. Kit 370-4342 includes left/right slide rails, 3/8-16 × 2"
slide rail feet, 10-32 × 1/2" retaining screws, and 1/4-20 shoulder
screws.
72-inch StorEdge Expansion Cabinet
RETMA Rail Mounting Screw Size #10-32
SG-ARY080A is for factory installed configurations of the StorEdge 5310 NAS.
Table Legend |
[F] = Field Replaceable Unit (FRU)
NS = Not Shown |
CODE |
PART # |
DESCRIPTION |
1 NS NS NS NS NS NS NS NS NS NS NS NS
- - - |
596-5276 180-2120 300-1816 340-4940 341-1075 341-1076
530-3339 [F]
537-1041 [F]
537-1058 [F]
537-1060 [F]
540-4558 540-5208 541-0739 130-4989 370-5658 370-5659 |
72-inch Cabinet Assembly
IEC 320 C13 to IEC 320 C14 Power Cord, 2.5M
Power Sequencer (×2)
Rear Door Assembly
2x1U Power Sequence Cover
2x1U Power Sequence Rear Mounting Bracket
Ethernet Cable, Category 5, RJ45 to RJ45, 1M
LC-LC Fibre Optical Cable, 2M
Master MPT to Fanout Cable
MTP-MTP Fanout Cable
2U FC-AL Switch Vent Panel
Curved Front Door, Option EXP-FRTDR-070
Patch Panel Assembly
Panel Mount MPO/MPO FC Coupler
Panel Mount LC Adapter
72-inch Cabinet |
1 - - - |
540-6290 180-2007 300-1718 370-3406 |
72-inch Cabinet Assembly with Power Strips
10A IEC 320 Sheet E to IEC 320 C13 Power Cord, 1M
42 Outlet Power Strip (×2)
72-inch Cabinet |
2 |
300-1393 [F] |
Universal Power Sequencer |
3 |
370-3547 [F] |
Keyswitch |
4 |
340-4939 |
Side Panel |
NS |
180-1954 [F] |
Power Cord, NEMA L6-30P to Han 6HsB |
NS |
180-1955 |
Power Cord, Blue 32A IEC 309 to Han 6HsB |
NS |
180-2059 [F] |
Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB |
NS |
180-2064 [F] |
Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB |
NS |
330-2610 |
1U Filler Panel |
NS |
330-2611 |
2U Filler Panel |
NS |
330-2612 |
2U Power Sequencer Keyswitch Filler Panel |
NS |
330-2613 |
3U Filler Panel |
NS |
330-2614 |
4U Filler Panel |
NS |
330-2615 |
5U Filler Panel |
NS |
330-2616 |
1U Trim Strip |
NS |
330-2617 |
2U Trim Strip |
NS |
330-2618 |
3U Trim Strip |
NS |
330-2619 |
4U Trim Strip |
NS |
330-2620 |
5U Trim Strip |
NS |
330-4087 |
5U NAS 5310 Trim Strip |
NS |
340-4471 |
Sequencer Mounting Bracket |
NS |
340-4472 |
Sequencer Mounting Bracket |
NS |
370-4342 [F] |
Rack Stabilizer FRU Kit |
NS |
370-3592 [F] |
IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
None |
Y IEC 320 to AMP Mate-N-Lok Power Cord |
NS |
530-2369 [F] |
Keyswitch Cable Extension, Dual Sequencers |
NS |
530-2236 [F] |
Fan Tray Status Cable, 3.2M |
NS |
540-3887 [F] |
AC Fan Assembly, Option X9819A |
|
805-3067 |
Installation and Service Manual |
Note: The caster, rack foot, side cover, and top cover do not have
Sun part numbers.
|
