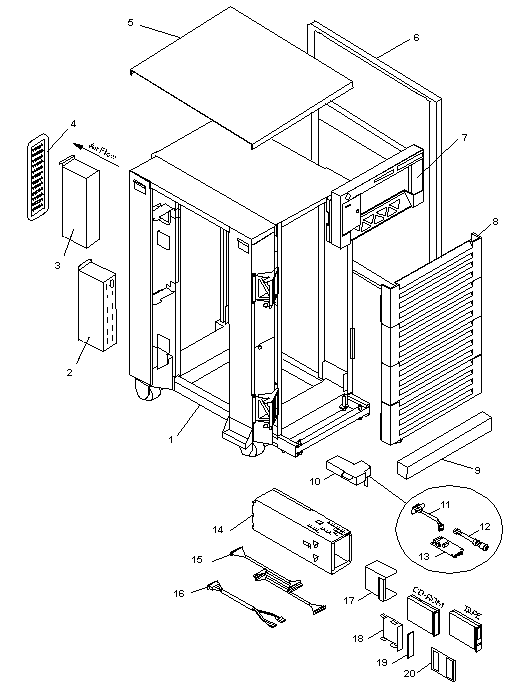

CODE |
MANUFACTURING PART # |
DESCRIPTION |
1 |
540-3571 |
68-inch Data Center Cabinet Assembly |
NS |
340-4628 |
SCSI Tray Support Bracket |
2 |
300-1403 [F] |
230V AC Power Sequencer |
3 |
540-2709 [F] |
Fan Tray Assembly |
4 |
340-3267 |
Fan Tray Rear Cover |
5 |
340-3352 |
Medium Grey Top Panel |
6 |
340-3671 |
Medium Grey Side Panel |
7 - - |
540-2746 330-1973 330-1983 |
Top Bezel Assembly
Clear Plastic Label Cover
Blank Filler Panel Insert |
7 - |
540-4087 540-4162 |
Top Bezel Assembly (replaced 540-2746)
Bezel Insert with Left/Right Doors |
NS |
330-1982 |
Filler Panel Insert with 4 Tape Drive Cutouts |
NS |
330-2379 |
Filler Panel Insert with 2 Tape Drive Cutouts |
8 |
540-3554
540-4163 |
Door with 4 Vented Panels
Door with 4 Vented Panels (replaced 540-3554) |
9 |
340-3355 |
Medium Grey Anti-Tilt Panel |
10 11 12 13 |
370-2161 [F]
530-2148 [F]
530-2227
501-5329 [F] |
Keyswitch and LED Assembly
PCB to Remote Keyswitch Cable
Keyswitch Cable
LED Board (replaced 501-2599) |
14 14 15 16 17 NS |
540-3577 [F]
340-4657
530-2528 [F]
530-2216 [F]
340-3264
370-3321 |
Peripheral Tray Assembly with Fan
Peripheral Tray
Internal SCSI Cable, 990 mm
DC Wire Harness
Mounting Bracket
92 mm Fan |
18 19 20 |
340-3341 330-1939 340-3270 |
Filler Panel Bracket
Filler Panel
Peripheral Mounting Bracket |
NS |
330-2014 [F] |
Power Key |
NS |
340-5205 |
Front Power Sequencer Mounting Bracket |
NS |
340-4624 |
Hinged Rear Panel, Medium Grey |
