Sun Fire V20z / V40z Heatsink Mounting Hardware
CPU Heatsink and Clip
| V20z Khepri 1.0 |
V20z Khepri 2.0 |
| Chassis FRU 380-0979 |
Chassis FRU 380-1168 |

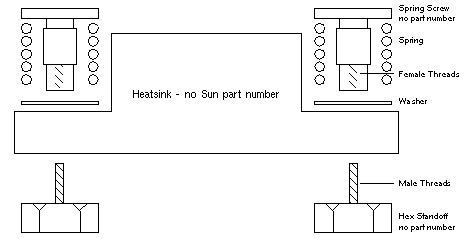

CPU Heatsink and Female Spring Screws
| V20z Khepri 2.5 |
V40z Sobek 2.0 |
Chassis FRU 380-1194-01
Chassis FRU 380-1194-02 |
Daughter Board 370-7778-01 |

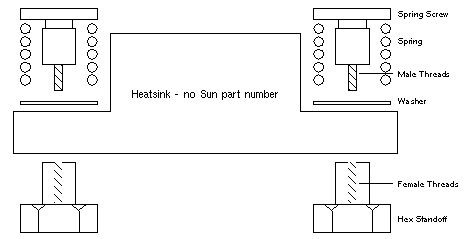

CPU Heatsink and Male Spring Screws
| V20z Khepri 2.5 |
V40z Sobek 2.0 |
| Chassis FRU >= 380-1194-03 |
Daughter Board 370-7778-02 |
Notes
- The heatsink mounting hardware design was changed in October 2005.
(WO_31526)
- Mounting Hardware Kit F371-0849-01 includes four male spring screws,
four female hex standoffs, four washers, two isopropanol alcohol wipes,
two thermal grease syringes, and one scraper.
|
