System Configuration Card Reader

Servers: Sun Fire V250

370-5646

Sun Fire V250 Codename: Enchilada 2P Tower

Notes:

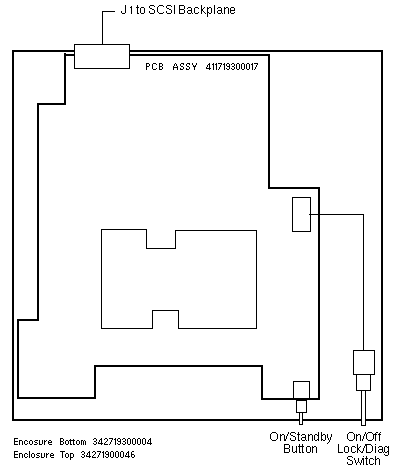

  1. Assembly/FRU 370-5646 includes the Enclosure, System Configuration Card Reader, SCCR Bezel, SCCR Button, Rotary Switch with Cable, and Rotary Switch Knob.
  2. The Button and Switch circuitry is routed from SCCR J1 to SCSI Backplane J2 to SCSI Backplane J503 to System Board PB/LED via a Ribbon Cable.

References

  1. Sun Fire V250 Server Installation Guide, 817-0899.
  2. Sun Fire V250 Server Administration Guide, 817-0900.
  3. Sun Fire V250 Server Parts Replacement Manual, 817-0901.
