SunPCi IIpro

Codename: Chimera+

Workstations: Ultra 5, 10, 30, 60, 80, 450
Sun Blade 100, 150, 1000, 2000
Servers: Enterprise 250, 450, 220R, 420R
Sun Fire 280R, V440, V480
Sun Fire V210 (1GHz), V240 (1GHz)

Option 2132

375-3051
3.3/5V 64Bit 33MHz

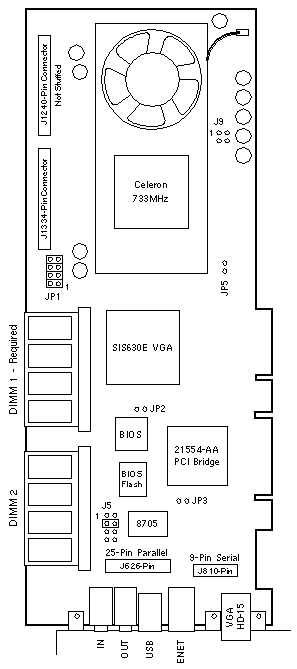

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J5 1-2
3-4
5-8
Out
In
Out
1.5V CPU core voltage
1.5V CPU core voltage
1.5V CPU core voltage
J5 1-8 Out 1.5V CPU core voltage
J9 1-2
3-4
Out
Out
Standalone thermal measurement
Standalone thermal measurement
JP1 1-2
3-4
5-6
7-8
In
In
In
In
66.7MHz CPU/33.3MHz PCI/100MHz SDRAM
66.7MHz CPU/33.3MHz PCI/100MHz SDRAM
66.7MHz CPU/33.3 PCI/100 SDRAM
66.7MHz CPU/33.3MHz PCI clock
JP2 1-2 Out Diagnostic
JP3 1-2 Out Debug
JP5 1-2 Out Unknown

Notes

  1. The minimum OS is Solaris 2.6 5/98, Solaris 7 8/99, or Solaris 8 10/00.
  2. SunPCi IIpro does not fit into Ultra 5, Slot 2 or Ultra 80, Slot 4.
  3. SunPCi IIpro was only supported in the 1GHz configurations of Sun Fire V210 and V240.
  4. RS-232 signal levels are used. RS-423 is not available.
  5. The Parallel/Serial Port Backpanel is part number 540-4086.
  6. The Parallel/Serial Port Backpanel requires an adjacent PCI slot on the component side of the SunPCi IIpro.

Memory Notes

  1. SunPCi IIpro ships with one 128MB SODIMM in Slot DIMM 1.
  2. Sun part number 370-4294 is the 128MB SODIMM, Option 7042.
  3. Sun part number 370-4295 is the 256MB SODIMM, Option 7044.
  4. Sun part number 370-4430 is the 512MB SODIMM, Option 7045.

References

  1. SunPCi II User's Guide, 806-4787.
  2. SunPCi II Installation Guide, 806-4788.
  3. Read Me First, 806-4789.
  4. SunPCi II SODIMM Installation Guide, 806-5765.
