SunPCi III

Codename: Bellerophon

Workstations: Sun Blade 100, 150, 1000, 1500, 2000, 2500
Servers: Enterprise 250, 450, 220R, 420R
Sun Fire 280R, V440, V480, V250

Options 2134 / 2135

375-3116
3.3/5V 64Bit 33MHz

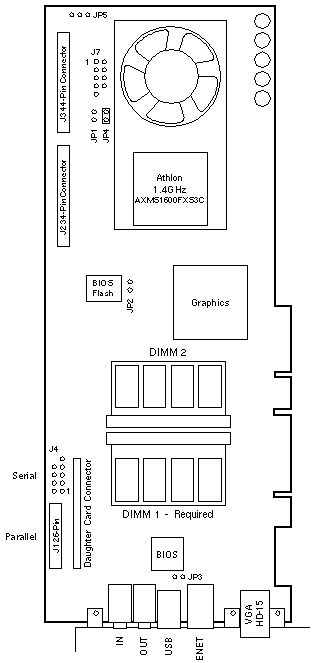

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JP1 1-2
1-2
In
Out
Hardware Reset
Normal (default)
JP2 1-2
1-2
In
Out
From HW Strapping
Strapping from Boot ROM (default)
JP3 1-2
1-2
In
Out
Diagnostics selection real
Emulate (default)
JP4 1-2
1-2
In
Out
Add-in platform (default)
Stand-alone platform
JP5 1-3 Out Unknown
J7 1-10 Out Unknown

LED Codes

Color Status
Off SunPCi powered off
Solid Green SunPCi running normally
Solid Amber System error, service required
Blinking Amber SunPCi running or booting up, but continuous
blinking indicates potential problem

Notes

  1. The minimum operating system is Solaris 7.
  2. SunPCi III ships with two optional daughter cards:
    370-6152 (USB/Firewire Backplate)
    530-3284 (Serial/Parallel Port Backplate)
    The first daughter card adds two USB ports and one IEEE1394 port.
    The second daughter card adds one Serial port and one Parallel port.
  3. Daughter Cards require adjacent slots on the component side of the SunPCi III.
  4. RS-232 signal levels are used. RS-423 is not available.
  5. See Product Notes (817-2968) for additional information about the number of supported SunPCi III cards for each particular system.
  6. The V210 and V240 are listed as supported systems in 817-2968-10 and -11.
    Sun PCi III is not supported on the V210 and V240 platforms.

Memory Notes

  1. SunPCi III ships with one 256MB DDR SODIMM in Slot DIMM 1.
  2. Sun part number 370-5463 is the 256MB DDR SODIMM, Option 7066.
  3. Sun part number 370-5967 is the 512MB DDR SODIMM, Option 7067.

References

  1. SunPCi III Quick Installation Guide, 817-0358.
  2. SunPCi III SODIMM Installation Guide, 817-0888.
  3. SunPCi III 3.1 User's Guide, 817-2966.
  4. SunPCi III 3.1 Product Notes, 817-2968.
  5. SunPCi III 3.0[.01] Product Notes, 817-0359.
  6. Installing Optional Hardware for the Preinstalled SunPCi III Product, 817-3276.
  7. Sun Blade 2000 and SunPCi III Cards: Installing the Required Card Guide, 817-3695.
