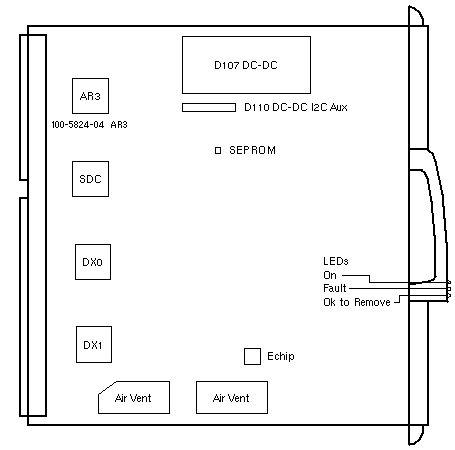

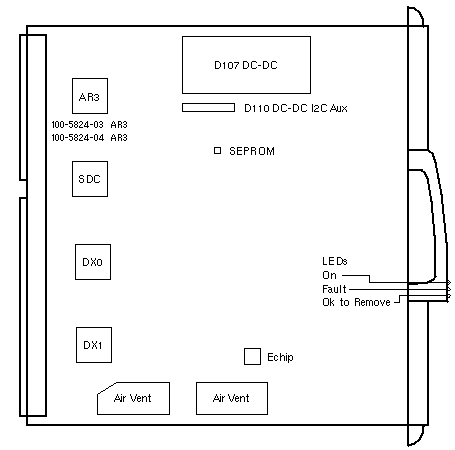

Level 2 Repeater

Servers: Sun Fire 4800, 4810, 6800, E4900, E6900

Option 4070

501-4953
Assembly/FRU
January 2001
SF 48x0/6800 only
501-6413 501-6413-07 501-6418 501-6418-07
L2 Repeater
FAB 270-6413
February 2003
L2 Repeater
FAB 270-7088
February 2007
Assembly/FRU
FAB 270-6413
February 2003
Assembly/FRU
FAB 270-7088
February 2007

Notes

  1. The minimum UltraSPARC III operating system is Solaris 8 4/01.
  2. The minimum UltraSPARC IV operating system is Solaris 8 2/04 or Solaris 9 4/04.
  3. Repeater Board slots are labeled RP0 through RP3.
  4. Repeater Board Filler 540-4042 is not ECO released.
  5. L2 Repeater 501-4953 is not qualified in the E4900 and E6900.

FRU Notes

  1. F501-4953-08 and -09 included L2 Repeater 501-4953.
  2. F501-4953-10 Rev 50 (February 2003) included L2 Repeater 501-6418.
  3. F501-4953-10 Rev 51 (April 2003) includes L2 Repeater 501-4953.
  4. F501-6418 (April 2003) includes L2 Repeater 501-6418.

References

  1. Sun Fire Systems Service Manual, 805-7363.
  2. Sun Fire 6800/4810/4800/3800 Systems Platform Administration Manual, 805-7373.
  3. Sun Fire Midrange Systems Platform Administration Manual, 817-2971.
  4. Sun Fire E4900/E6900 Service Manual, 817-4120.
  5. Sun Fire Systems Platform Administration Manual Firmware 5.17, 817-5243.



Level 2 Repeater

Servers: Sun Fire 4800, 4810, 6800, E4900, E6900

501-7335-01 501-7335-02 501-7231-01 501-7231-02
L2 Repeater
FAB 270-6413
April 2006
L
L2 Repeater
FAB 270-7088
March 2007
L
Assembly/FRU
FAB 270-6413
April 2006
L
Assembly/FRU
FAB 270-7088
March 2007
L

Notes

  1. The minimum UltraSPARC III operating system is Solaris 8 4/01.
  2. The minimum UltraSPARC IV operating system is Solaris 8 2/04 or Solaris 9 4/04.
  3. The minimum UltraSPARC IV+ operating system is Solaris 9 9/05 or Solaris 10 3/05 HW1.
  4. Repeater Board slots are labeled RP0 through RP3.
  5. L2 Repeater 501-7231 ships in the E4900,L and E6900,L.

References

  1. Sun Fire Systems Service Manual, 805-7363.
  2. Sun Fire 6800/4810/4800/3800 Systems Platform Administration Manual, 805-7373.
  3. Sun Fire Midrange Systems Platform Administration Manual, 817-2971.
  4. Sun Fire E4900/E6900 Service Manual, 817-4120.
  5. Sun Fire Systems Platform Administration Manual Firmware 5.17, 817-5243.



Level 2 Repeater

Servers: Sun Fire 4800, 4810, 6800, E4900, E6900

Option XE6900-FP-SWITCH-Z

501-7595-01 501-7595-02 501-7594-01 501-7594-02
L2 Repeater
FAB 270-6413
May 2006
L
L2 Repeater
FAB 270-7088
March 2007
L
Assembly/FRU
FAB 270-6413
May 2006
L
Assembly/FRU
FAB 270-7088
March 2007
L

Notes

  1. The minimum UltraSPARC III operating system is Solaris 8 4/01.
  2. The minimum UltraSPARC IV operating system is Solaris 8 2/04 or Solaris 9 4/04.
  3. The minimum UltraSPARC IV+ operating system is Solaris 9 9/05 or Solaris 10 3/05 HW1.
  4. Repeater Board slots are labeled RP0 through RP3.
  5. L2 Repeater 501-7594 supports multiple domains in Sun Fire 6800 and E6900.
  6. L2 Repeater 501-7594 requires OBP 5.20.1.
  7. XE6900-FP-SWITCH-Z includes four 501-7594 L2 Repeaters. OBP 5.20.1 is required.
  8. The SC showboards command identifies 501-7594 as Repeater Board V2.
  9. Do not mix 501-4953, 501-6418, or 501-7231 with 501-7594.

References

  1. Sun Fire Systems Service Manual, 805-7363.
  2. Sun Fire 6800/4810/4800/3800 Systems Platform Administration Manual, 805-7373.
  3. Sun Fire Midrange Systems Platform Administration Manual, 817-2971.
  4. Sun Fire E4900/E6900 Service Manual, 817-4120.
  5. Sun Fire Systems Platform Administration Manual Firmware 5.17, 817-5243.
  6. Sun Fire 6800/E6900 Repeater Board Installation Guide, 819-5993.
