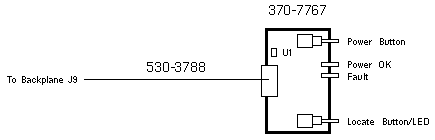

Front Interface Module

Servers: Sun Blade 8000 P

370-7767 541-1552
Front Indicator Module
L
Front Interface Assy/FRU
L

Notes

  1. Front Interface Module is also described as Front Indicator Module.
  2. Serial EEPROM U1 includes FRUID data and the system serial number.
  3. Assembly 541-1552 includes Bracket 341-2765, Cable 530-3788, FIM 370-7767, and Front Trim Panel 341-2766.

References

  1. Sun Blade 8000 Modular System Installation Guide, 819-5647.
  2. Sun Blade 8000 Modular System Product Notes, 819-5651.
