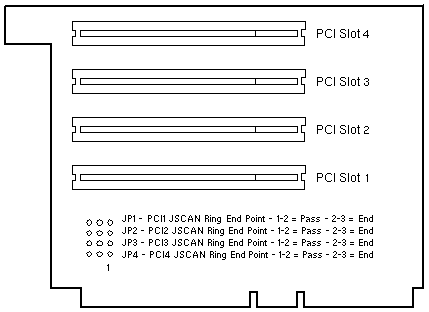

PCI Riser Board
370-3197 |
370-3982 |
540-4228 |
5V 32Bit 33MHz w/o Stiffener w/o Bracket |
5V 32Bit 33MHz w Stiffener w/o Bracket |
5V 32Bit 33MHz w Stiffener w Bracket |
Connector Without Right Side Key
Connector With Right Side Key
Notes
- Some connectors were molded without the right side key.
- The PCI signaling is 5V, 32Bits, 33MHz.
- All slots support 32-bit or 64-bit PCI boards.
- All slots support long (312 mm) or short (174.63 mm) PCI cards.
- Systems built before July 1999 may require spacers under the PCI Riser.
Spacers are included in Mounting Kit 540-4228.
Refer to FCO A0152.
- Do NOT install spacers under PCI Riser Boards installed in systems built
after June 2000 with EZ Label Service Code C Series 3.
References
-
Sun Ultra 5/10 Service Manual, 805-0423.
-
Sun Ultra 5 Service Manual, 805-7763.
-
Sun Ultra 10 Service Manual, 805-7764.
-
Sun Ultra 5/10 Product Note, 805-3647.
- Sun Ultra 10 ShowMe How Multimedia Documentation, 704-5983.
|
