Ultra 5 / Ultra 10
(A21/A22)

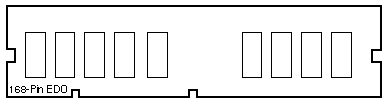

Options 7030 / 7031 / 7032 / 7033 / 7036 / 7037 / 7038 / 7039

370-3211 370-3198 370-3199 370-3200 370-3201
16MB 3.3V ECC
60ns DIMM
No Option
32MB 3.3V ECC
60ns DIMM
Option 7030
64MB 3.3V ECC
60ns DIMM
Option 7031
128MB 3.3V ECC
60ns DIMM
Option 7032
256MB 3.3V ECC
60ns DIMM
Option 7033
370-3796 370-3797 370-3798 370-3799
32MB 3.3V ECC
50ns DIMM
Option 7036
64MB 3.3V ECC
50ns DIMM
Option 7037
128MB 3.3V ECC
50ns DIMM
Option 7038
256MB 3.3V ECC
50ns DIMM
Option 7039

Memory Map

SOCKET BANK ADDRESS RANGE ADDRESS RANGE
DIMM 1
DIMM 2
DIMM 3
DIMM 4
Bank 0
Bank 0
Bank 1
Bank 1
00000000 - 0fffffff
00000000 - 0fffffff
10000000 - 1fffffff
10000000 - 1fffffff
20000000 - 2fffffff
20000000 - 2fffffff
30000000 - 3fffffff
30000000 - 3fffffff

Memory Notes

  1. The minimum memory requirement is two DIMMs in any bank.
  2. The 16MB DIMM uses 10-bit column addressing and was not sold.
  3. The 32, 64, 128, and 256MB DIMMs use 11-bit column addressing.
  4. If 10-bit and 11-bit DIMMs are mixed, either pair will be ignored.
  5. The 256MB DIMMs are not supported in the Ultra 5.
  6. Memory speed is 60ns if 50ns and 60ns DIMMs are mixed.
  7. UltraSPARC IIi speeds >=360MHz support 50ns memory speed.
  8. System Boards 375-0066, 375-0079, and 375-0115 support 50ns memory.
  9. OBP >=3.25v3 is required when Micron MTxLDxx72FG-5 series EDO DIMMs are used with 360MHz, 400MHz, or 440MHz CPU modules.

References

  1. Sun Ultra 5/10 Service Manual, 805-0423.
  2. Sun Ultra 5 Service Manual, 805-7763.
  3. Sun Ultra 10 Service Manual, 805-7764.
  4. Sun Ultra 5/10 Product Note, 805-3647.
  5. Sun Ultra 5/10 Product Note, 805-4970.
  6. Sun Ultra 5 ShowMe How CD-ROM, 704-5753.
  7. Sun Ultra 10 ShowMe How CD-ROM, 704-5983.
