Sun Fire T1000 / T2000
SPARC Enterprise T1000 / T2000
Netra T2000

Options 7800A / 7801A / 7802A / 7803A
Options SEKX2A1Z / SEKX2B1Z / SEKX2C1Z / SEKX2D1Z

370-6207	370-6208	370-6209	370-6210
DDR2-533/PC2-4200 ECC/Registered 512MB DIMM 1GB Option 7800A 1GB Option SEKX2A1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 1GB DIMM 2GB Option 7801A 2GB Option SEKX2B1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 2GB DIMM 4GB Option 7802A 4GB Option SEKX2C1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 4GB DIMM 8GB Option 7803A 8GB Option SEKX2D1Z

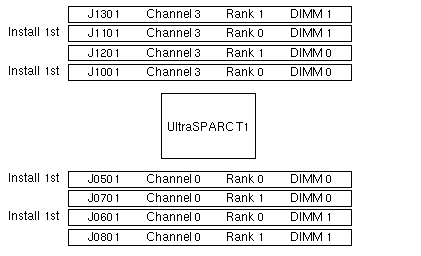

T1000 Memory Map


T2000 Memory Map

Sun Fire T1000 Codename: Erie Sun Fire T2000 Codename: Ontario Netra T2000 Codename: Pelton

Notes

1. The packing list describes 370-6208 and 370-6209 as 533MHz.
2. DDR2-667 DIMMs were qualified in September 2007.

T1000 Notes

1. The minimum T1000 memory requirement is four Rank 0 DIMMs.
2. All DIMMs must have identical capacity.
3. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

T2000 Notes

1. The minimum T2000 memory requirement is eight Rank 0 DIMMs.
2. All DIMMs must have identical capacity.
3. An example error message from the DIMM in J2401 is MB/CMP0/CH3/R1/D1 .

References

1. Sun Fire T1000 Product Notes, 819-3246.
2. Sun Fire T1000 Installation Guide, 819-3247.
3. Sun Fire T1000 Service Manual, 819-3248.
4. Sun Fire T2000 Product Notes, 819-2544.
5. Sun Fire T2000 Installation Guide, 819-2546.
6. Sun Fire T2000 Service Manual, 819-2548.
7. Netra T2000 Server Administration Guide, 819-5837.
8. Netra T2000 Server Installation Guide, 819-5838.
9. Netra T2000 Server Product Notes, 819-5840.
10. Netra T2000 Server Service Manual, 819-5841.
11. SPARC Enterprise T1000 Server Installation Guide, 820-0018.
12. SPARC Enterprise T1000 Server Service Manual, 820-0019.
13. SPARC Enterprise T1000 Server Administration Guide, 820-0020.
14. SPARC Enterprise T1000 Server Product Notes, 820-0021.
15. SPARC Enterprise T2000 Server Installation Guide, 819-7988.
16. SPARC Enterprise T2000 Server Service Manual, 819-7989.
17. SPARC Enterprise T2000 Server Administration Guide, 819-7990.
18. SPARC Enterprise T2000 Server Product Notes, 819-7992.
