Options 4650A / 4651A / 4652A / 4653A / 4654A
Options 5866A / 5867A / 5868A / 5869A / 5870A

371-4282 371-4283 371-4285
DDR3-1066/PC3-8500
1-Rank/1Gbit SDRAM
2GB Registered DIMM
2GB Option 4650A/5866A
without Heat Spreader
DDR3-1066/PC3-8500
2-Rank/1Gbit SDRAM

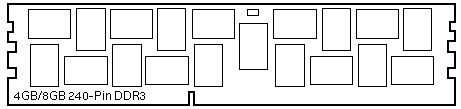

4GB Registered DIMM
4GB Option 4651A/5867A
with Heat Spreader
DDR3-1066/PC3-8500
2-Rank/2Gbit SDRAM
8GB Registered DIMM
8GB Option 4652A/5868A
with Heat Spreader
371-4287 371-4288
DDR3-1333/PC3-10600
1-Rank/1Gbit SDRAM
2GB Registered DIMM
2GB Option 4653A/5869A
without Heat Spreader
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
4GB Registered DIMM
4GB Option 4654A/5870A
with Heat Spreader

Sun Blade X6270 Codename: Virgo
Sun Fire X4170 Codename: Lynx 1U
Sun Fire X4270 Codename: Lynx 2U Elwood
Sun Fire X4275 Codename: Lynx 2U Hyde
Netra X4270 Codename: Aurigi-DC
Oracle Exadata V2 Codename: Quicksilver

Sun Blade X4170/X4270/X4275 and X6270 Notes

  1. Install memory filler panel 350-1288 in all unused slots.
  2. Installing DIMMs in groups of three gives optimal performance.
    Minimum supported DIMMs is one per CPU:
    Install 1st DIMM in CPU0/CPU1 slots D8.
    Install 2nd DIMM in CPU0/CPU1 slots D5.
    Install 3rd DIMM in CPU0/CPU1 slots D2.
    Install 4th DIMM in CPU0/CPU1 slots D7.
    Install 5th DIMM in CPU0/CPU1 slots D4.
    Install 6th DIMM in CPU0/CPU1 slots D1.
    Install 7th DIMM in CPU0/CPU1 slots D6.
    Install 8th DIMM in CPU0/CPU1 slots D3.
    Install 9th DIMM in CPU0/CPU1 slots D0.
  3. Use of the same DIMM size and speed is recommended for maximum performance.

References

  1. Sun Blade X6270 Installation Guide, 820-6175.
  2. Sun Blade X6270 Service Manual, 820-6178.
  3. Sun Blade X6270 Product Notes, 820-6179.
  4. Sun Fire X4170/X4270/X4275 Installation Guide, 820-5827.
  5. Sun Fire X4170/X4270/X4275 Service Manual, 820-5830.
  6. Sun Fire X4170/X4270/X4275 Product Notes, 820-5831.
