Netra T1 AC200 / Netra T1 DC200
Netra 120 / Sun Fire V120

Options 7091 / 7092 / 7093

370-4237 370-4281 370-4874

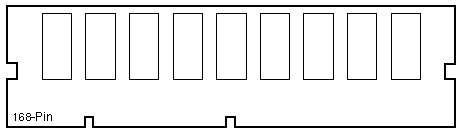

256MB 3.3V ECC
PC133 SDRAM DIMM
T1/N120/V120
Option 7091
512MB 3.3V ECC
PC133 SDRAM DIMM
T1/N120/V120
Option 7092
1GB 3.3V ECC
PC133 SDRAM DIMM
N120/V120
Option 7093

Address Generation Logic Memory Mapping

Identical Size DIMMs Example

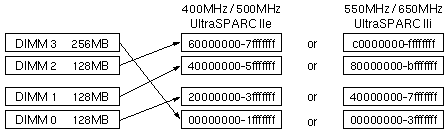

Mixed Size DIMMs Example

Memory Notes

  1. The minimum memory requirement is one DIMM in Slot 0.
  2. The memory installation sequence is Slot 0, 1, 2, and 3.
  3. Each DIMM slot addresses 512MB with 400MB and 500MHz UltraSPARC IIe.
  4. Each DIMM slot addresses 1GB with 550MHz and 650MHz UltraSPARC IIi.
  5. When equal size DIMMs are installed, the lowest slot number is mapped to the lowest address range.
  6. When mixed size DIMMs are installed, the slot number with the largest size DIMM is mapped to the lowest address range.
  7. Memory bus speed is set by OBP during initialization and is a ratio of the CPU clock frequency.

References

  1. Netra T1 Server User's Guide, 806-5978.
  2. Netra 120 and Sun Fire V120 Server User's Guide, 816-2090.
