Options X4095A / X4096A / X4850A / X4851A / X4910A / X4911A

371-4898 371-4899
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
1.5V VDD/VDDQ

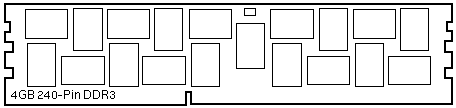

4GB Registered DIMM
4GB Option X4850A
with Heat Spreader
DDR3-1066/PC3-8500
2-Rank/2Gbit SDRAM
1.5V VDD/VDDQ
8GB Registered DIMM
8GB Option X4851A
with Heat Spreader
371-4073 371-4999 371-4965 371-4966
DDR3-1333/PC3-10600
1-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
4GB Registered DIMM
4GB Option X4095A
with Heat Spreader
DDR3-1333/PC3-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB Option X4096A
with Heat Spreader
DDR3-1333/PC3-10600
1-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
4GB Registered DIMM
4GB Option X4910A
with Heat Spreader
DDR3-1333/PC3-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB Option X4911A
with Heat Spreader

Netra X4270 Codename: Aurigi-DC
Netra X6270 M2 Codename: Virgo+-LP
Sun Blade X6270 M2 Codename: Virgo+
Sun Fire X4170 M2 Codename: Lynx+ (Thelma)
Sun Fire X4270 M2 Codename: Lynx+ (Hyde)
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus)
Sun ZFS Storage 7120 Codename: Amber Road (Iwashi+)
Sun ZFS Storage 7320 Codename: Amber Road (Maguro+)

Notes

  1. Do not install DIMMs in slots next to an empty CPU socket.
  2. The minimum configuration is one DIMM per CPU.
  3. Install DIMMs D8/D5/D2 then DIMMs D7/D4/D1 then DIMMs D6/D3/D0.
  4. Use of the same DIMM size and speed is recommended for maximum performance.
  5. DIMMs 371-4965 and 371-4966 are not qualified for use in the Netra X4270.

References

  1. Netra X4270 Server Installation Guide, 821-0572.
  2. Netra X4270 Server Service Manual, 821-0573.
  3. Netra X4270 Server Product Notes, 821-0577.
  4. Netra X6270 M2 Server Module Product Notes, 821-0936.
  5. Netra X6270 M2 Server Module Installation Guide, 821-0937.
  6. Netra X6270 M2 Server Module Service Manual, 821-0939.
  7. Sun Blade X6270 M2 Service Manual , 821-0499.
  8. Sun Blade X6270 M2 Product Notes, 821-0496.
  9. Sun Fire X4170 M2 Service Manual, 821-0486.
  10. Sun Fire X4270 M2 Service Manual, 821-0488.
  11. Sun Fire X4170 M2 and X4270 M2 Product Notes, 821-0482.
