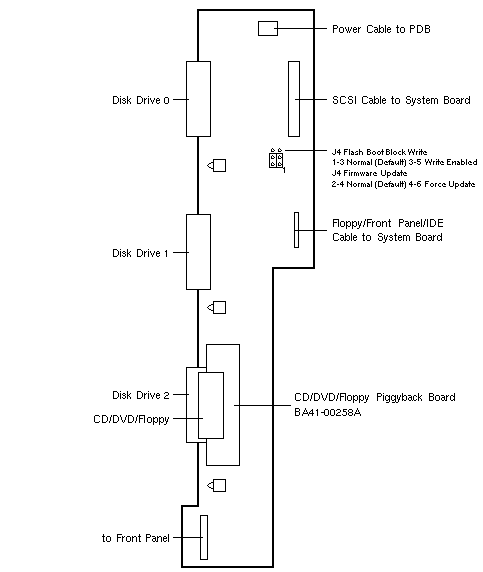

I/O Backplane

Sun Fire V60x

370-6183	501-6618	501-6638
Assy A77570-201 PB# A79805-002 MP# A80233-002	Assy A77570-201 PB# A79805-002 MP# A80233-002	501-6618 + Firmware (-01 Rev 50) 370-6183 + Firmware (-01 Rev 51)

Sun Fire V60x Codename: Grizzly

Note:

The hot-swap capability of Backplane serial numbers between ABWE227xxxxx and ABWE236xxxxx may not function correctly with RAID Controller Option 5132. Reboot the system after a drive is hot-swapped in one of the affected Backplanes.

References

1. Sun Fire V60x and V65x Release Notes, 817-2026.
2. Sun Fire V60x and V65x User Guide, 817-2023.
3. Sun Fire V60x and V65x Troubleshooting Guide, 817-2024.
4. Sun Fire V60x and V65x Server Management Guide, 817-2025.
5. Sun Fire V60x and V65x ReadMe Hot-Swappable Controller Update, 817-7172.
6. RAID Controller PCI Card Release Notes, 817-4031.
