1-Slot PCI Riser

Sun Fire V215

375-3326	375-3519	375-3328	375-3516
1UEER 411743100006 Labeled 1UEER Right Side Slot 1 L	1UEEL 411743100010 Left Side Slot 0 X8426A-Z L	1UXXL 411743100014 Labeled 1UXXL Left Side Slot 0 L	1UXXL 411743100127 Left Side Slot 0 X8424A-Z L

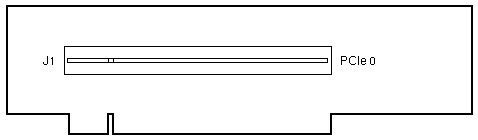

PCI Express Riser 375-3326 1UEER for Slot 1

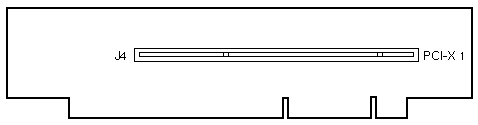

PCI-X Riser 375-3328 1UXXL for Slot 0

Sun Fire V215 Codename: Seattle 1U

Notes

1. Riser 375-3516 was phased in to replace 375-3328 in November 2007. (WO_37848)
2. FRU F375-3328 was scrapped in November 2007. (WO_37848, GSAP 4104)

References

1. Sun Fire V210 and V240 Servers Installation Guide, 816-4825.
2. Sun Fire V210 and V240 Servers Administration Guide, 816-4826.
3. Sun Fire V210 and V240 Servers Product Notes, 816-4828.
4. Sun Fire V210 and V240 Servers Parts Replacement Manual, 817-0743.
