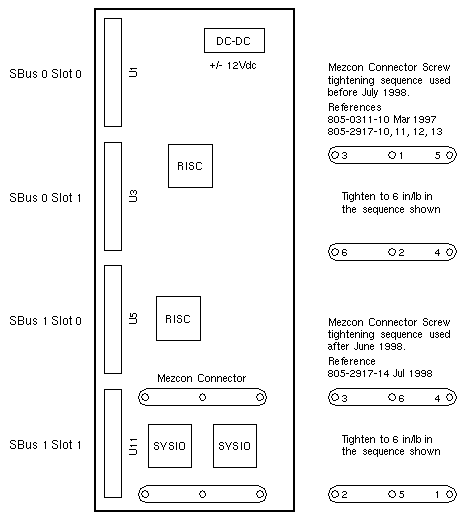

SBus I/O Board

E10000

Option 2730

501-4349	501-4478

Notes

1. Install only one TRI/S. Do NOT install any board in the second slot.
2. Install SCI and UDWIS/S on separate SBus channels.

SBus I/O Board 501-4349 Notes

1. Install FC100/S in Slot 0 and DWIS/S in Slot 1.
2. Install GBE/S 1.x in Slot 0. There are no slot restrictions for GBE/S 2.0.
3. Install SunFastEthernet 2.x in Slot 0 and DWIS/S in Slot 1.
4. Install SunSwift in Slot 0 and DWIS/S in Slot 1.
5. SSP software controls whether the system will boot when SBus boards are installed in Slot 1 of SBus I/O board 501-4349. Problems may occur if SBus slot restrictions are not followed.

SBus I/O Board 501-4478 Notes

1. SSP software controls whether the system will boot when SBus boards are installed in Slot 1 of SBus I/O board 501-4478.
2. There are no slot restrictions for FC100/S, GBE/S, SunFastEthernet, or SunSwift when SBus I/O board 501-4478 is used with new versions of SSP software.*

References

1. Ultra Enterprise 10000 System Service Manual, 805-2917.
2. BugIDs 4046986, 4049704, 4091053, and 4157729.
