RAID I/O Module

Disk Arrays: StorEdge 3511

Option XTA-3511-CTRL-1G

370-6773
Dot Hill FAB 60-000127

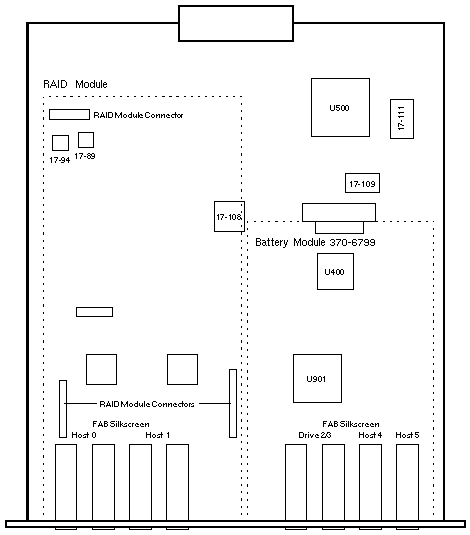

Rear Views   (both types of backpanels are shown)
.4 Meter LC-SC Cable 537-1036, Option 9721
2 Meter LC-SC Cable 537-1035, Option 9722
5 Meter LC-SC Cable 537-1033, Option 9723
15 Meter LC-SC Cable 537-1034, Option 9724
.8 Meter LC-LC Cable 537-1057, Option 9730
2 Meter LC-LC Cable 537-1041, Option 9732
5 Meter LC-LC Cable 537-1042, Option 9733
15 Meter LC-LC Cable 537-1043, Option 9734
FC Connector LEDs
L = Link
Link On
No Link Off		 S = Speed
2GB On
1GB Off

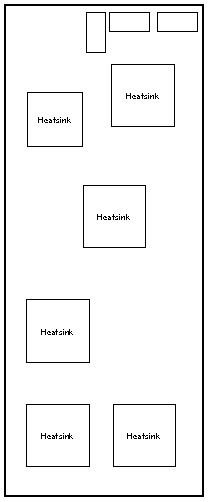

RAID Module Top Side
Dot Hill 66-00000056

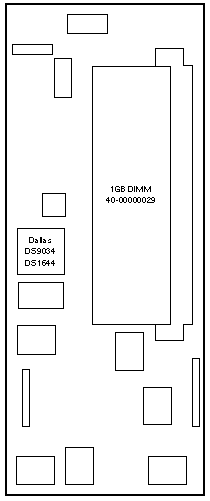

RAID Module Bottom Side
Dot Hill 66-00000056

StorEdge 3511 Codename: Minnow 2U Serial ATA

Notes

  1. XTA-3511-CTRL-1G includes two Shortwave SFP Transceivers.
  2. Single RAID StorEdge 3511 options include four Shortwave SFP Transceivers.
  3. Dual RAID StorEdge 3511 options include six Shortwave SFP Transceivers.
  4. The RAID I/O Module and the Expansion I/O Module use the same FAB.
  5. The RAID I/O Module FAB silkscreen does not match the rear panel silkscreen.

References

StorEdge 3000 Family Installation, Operation and Service Manual, 816-7300.
