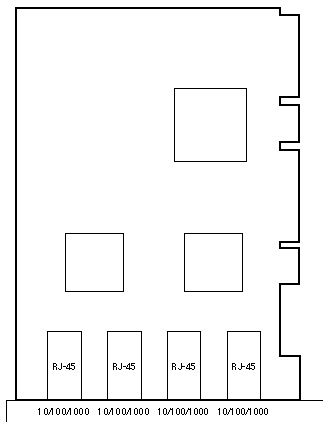

Quad Gigabit Ethernet

Servers: Sun Fire V20z, V40z

Options 9273A / 9273A-Z

370-6688-01 370-6688-02 371-1630
Intel PRO/1000MT
PWLA8494MT
3.3/5V   32/64Bit   PCI/PCI-X
33/66/100/133MHz
September 2004
Option X9273A
Intel PRO/1000MT
PWLA8494MTG4P20
3.3/5V   32/64Bit   PCI/PCI-X
33/66/100/133MHz
February 2005
Option X9273A
Intel PRO/1000GT
PWLA8494GT
3.3/5V   32/64Bit   PCI/PCI-X
33/66/100/133MHz
September 2006
Option X9273A-Z
L

Notes

  1. The V20z supports one Quad Ethernet Controller.
  2. The V40z supports two Quad Ethernet Controllers.
  3. Option 9273 is not supported in 133MHz PCI-X slots because of AMD Erratum #56.
  4. The minimum Solaris release is Solaris 9 4/04 x86 or Solaris 10 3/05 x64.
  5. Supported operating systems are 64-bit RHEL, 64-bit SLES 8, or SUSE 9 Pro.
  6. Option 9273 is not supported with the 32-bit RHEL operating system.
  7. The 370-6688-01, Product Code PWLA8494MT1000, used a Cypress CY22393.
  8. The 370-6688-02, Product Code PWLA8494MTG4P20, uses a Cypress CY25200.
  9. The PWLA8494MT uses two Intel 82546EB Gigabit Controllers, PCI ID 8086,101d.
  10. The PWLA8494GT uses two Intel 82546GB Gigabit Controllers, PCI ID 8086,10b5.

References

  1. Sun Fire V20z and V40z Servers Release Notes, 817-5252.
  2. Sun Fire V20z and V40z Servers Release Notes, 819-1771.
  3. AMD-8131 HyperTransport PCI-X Tunnel Revision Guide, AMD Publication 26310.
