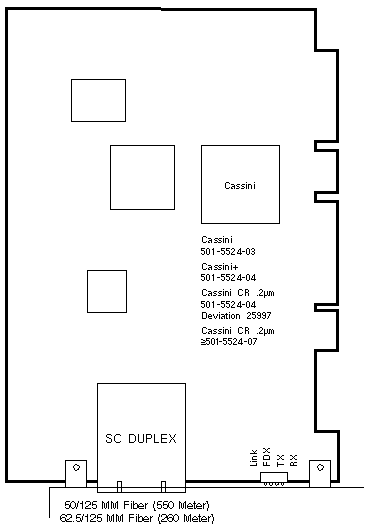

GigaSwift Ethernet 1.0 MMF

Codename: Cassini Kuheen

Workstations: Ultra 5, 10, 60, 80
Sun Blade 100, 150, 1000, 1500, 2000, 2500
Servers: Enterprise 250, 450, 220R, 420R
Enterprise 3x00, 4x00, 5x00, 6x00, 10000
Sun Fire 280R, 12K, 15K, E20K, E25K
Sun Fire V480, V490, V880, V890
Sun Fire 4800, 4810, 6800, E2900, E4900, E6900
Sun Fire V120, V210, V240, V250, V1280
Sun Fire V20z, V40z
Telco: Netra 20, 120, 240, 440, 1280
Netra T1, t1120/1125

Options 1151 / 3151

501-5524
Multi-Mode Fiber
3.3/5V   32/64Bit   33/66MHz

Notes

  1. The minimum operating system is Solaris 2.6.
  2. Fcode 2.12.4 on 501-5524-09 fixed BugID 5001977 in September 2004.
  3. Do Not install GigaSwift Ethernet with Ultra 5/10 PCI graphics options.
  4. Do Not install GigaSwift Ethernet and ESI/P on the same Ex000 PCI I/O Board.
  5. Refer to SunAlert 1000479.1 for information about forced mode with the CE driver.

References

  1. GigaSwift Ethernet Adapter Installation and User's Guide, 816-1702.
  2. Release Notes for GigaSwift Ethernet Adapter, 806-2990.
