Seagate ST3250820NS (250.0GB)

3 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Workstations: Ultra 20, 20 M2, 24, 40, 40 M2, 45
Servers: Sun Fire X2100, X2100 M2, X2200, X2200 M2, X2250, X4500, X4540
Disk Arrays: Storage 7210, J4200
StorageTek 5220 NAS

Options 8011A / TA-ST1CF-250G7K
Options XRA-ST1CE-250G7K / XRA-ST1CH-250G7KZ
Options XRB-ST1CE-250G7K / XRC-ST1CE-250G7K
Options XTA-ST1NJ-250G7K

390-0354
Barracuda ES
540-6485 540-7111 540-7511 540-7604 541-1468
Spud Bracket FRU
1" Bracket 540-6562
Option 8011A
XRA-ST1CE-250G7K
XRB-ST1CE-250G7K
5220 NAS FRU
1" Bracket 541-1406
TA-ST1CF-250G7K
Spud Bracket FRU
1" Bracket 540-6562
XRC-ST1CE-250G7K
J4200/J4400 FRU
Interposer 570-1181
Tray 570-1182
XTA-ST1NJ-250G7K


See Notes
7210/X4500/X4540 FRU
1" Bracket 541-0456
XRA-ST1CH-250G7KZ

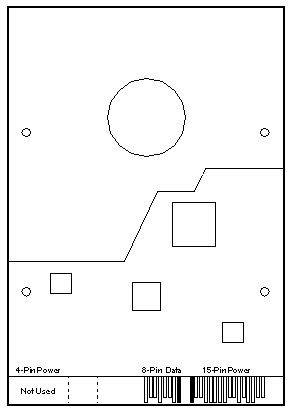

Bottom View

Notes

  1. Drive 390-0354 was released and added to 540-6485 in May 2007. (WO_36820)
  2. Drive 390-0354 was added to 541-7111 in June 2007. (WO_37111)
  3. Drive 390-0354 was added to 541-1468 in July 2007. (WO_37357)
  4. Assembly 540-7511 with 390-0354 was released in July 2007. (WO_37351)
  5. Assembly 540-7604 with 390-0354 was released in May 2008. (WO_39168)
  6. Assembly 540-7727 with 390-0354 was waivered in April 2008. (WO_38893)
  7. Drive 390-0354 does not include a World-Wide-Name required for Multipathing.
    Drive 390-0354 was removed from 540-7604 in August 2009. (WO_40319)
  8. 390-0354 was used in 541-3678 in September 2009 on Sun Fire X4540 by deviation. (WO_42089)
  9. 390-0354 was used in 541-3678 in September 2009 on Storage 7210 by deviation. (WO_42093)
  10. The Seagate Model Number on the serial number label is ST3250820NS.
  11. The Sun Model Number on the serial number label is ST32500NSSUN250G.
  12. The Product in Identify Device data bytes 31-38 is ST32500NSSUN250G.
