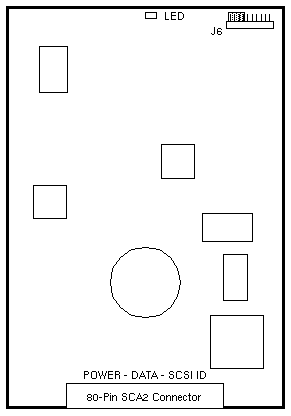

Seagate ST318305LC (18.2GB)

3 1/2" 10000 RPM Low Voltage Differential Ultra-3 SCSI

Workstations: Ultra 60, 80
Servers: Enterprise 250, 450, 220R, 420R
Sun Fire V120, 12K, 15K
Telco: Netra t1, T1, 120
Netra t1120/1125, t1400/1405
Netra ct 400/800, ft 1800
Netra st A1000, st D1000, st D130
Disk Arrays: StorEdge A1000, D1000
StorEdge UniPack, MultiPack
StorEdge S1, D2, D240

Options 5164 / 5237 / 5238 / 5239 / 5247 / 5248 / 5880 / 6957

390-0085
1" Height
Cheetah 5
540-4077 540-4177 540-4401
Netra ft 1800 FRU
w Bracket 540-4884
w Plate 340-4288
or Plate 340-6640
Spud Bracket FRU
w 1" Bracket 540-3024
Netra ct/st/T1/120 FRU
NEBS Level 2/3
w 1" Bracket 540-3024
w Plate 340-4288
or Plate 340-6640
or Plate 340-5928
or Plate 340-7269
540-4910 540-4921 565-1569
Spud Bracket FRU
w 1" Bracket 540-3024
w Plate 340-5928
or Plate 340-7269
Netra t1/t1400/1405 FRU
NEBS Level 3
w 1" Bracket 540-3024
12K/15K SC Peripheral Bd
<= 565-1569-03
540-4178 595-5471
StorEdge D240
Center FRU
12-Slot A1000/D1000 FRU
w 1" Bracket 540-3024
w Plate 340-4288 or 340-6640
or Plate 340-5928 or 340-7269
StorEdge D240
Left/Right FRU
Assembly 599-2398
or Assembly 540-5701
w Drive Assy 540-4177
w Bracket 340-6476

Note:

  1. The Netra T1 used 540-4178 in place of 540-4401 in October 2001 (deviation WO_22211) .
  2. The Netra st A/D1000 became NEBS Level 2 when 390-0085 was added to Assembly 540-4401 in September 2001.
