Zytec 300-1359
605 Watt Power Supply

Workstations: Ultra 450
Servers: Enterprise 450

Option 9682

300-1359
AC Input Power Supply

Front View

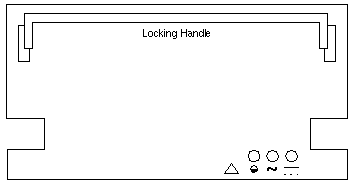

Rear View

AC Input

100-240 VAC
47-63Hz
8A

DC Output

+3.3V +5.0V +12.0V -12.0V +5.0V Standby
47.0A 64.0A 20.0A 1.0A 2.4A

System Codenames

System Codename
Ultra 450 Tazmo
Enterprise 450 Tazmax

Note

A memory latch remembers the power supplies last power On/Off state. When a power supply that was Off is installed in a system that is On, the supply will remain Off. To turn on the power supply, rotate the front panel keyswitch from the Power-On position to the Diagnostic position, then back to the Power-On position, or press the keyboard Power-On key.
