Sun 300-1322
45 Watt DC-DC Converter

Workstations: Ultra 450
Servers: Enterprise 450

Options 2230 / 2240 / 2244 / 3870

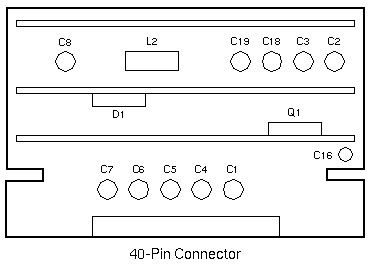

300-1322
DC-DC Converter

System Codenames

System Codename
Ultra 450 Tazmo
Enterprise 450 Tazmax

Notes

  1. Each UltraSPARC Module requires a DC-DC Converter.
  2. The Module and DC-DC installation sequence is B2, A2, B1, and A1.
  3. The output voltage is programmable from 2.5Vdc to 3.5Vdc.
  4. Option X2230A is DC-DC Converter and a 250MHz module.
  5. Option X2240A is DC-DC Converter and a 300MHz module.
  6. Option X2244A is DC-DC Converter and a 400MHz module.
  7. Option X3870A is DC-DC Converter 300-1322 without a module.

Reference

  1. Ultra Enterprise 450 Server Owners Guide, 805-0429.
  2. Ultra 450 Workstation Owners Guide, 805-0430.
