DC Power Distribution Board
Sun Fire V240 Codename: Enchilada 2U |
Notes
- PDB FRU F370-5138-03 was released in March 2003.
(WO_26284)

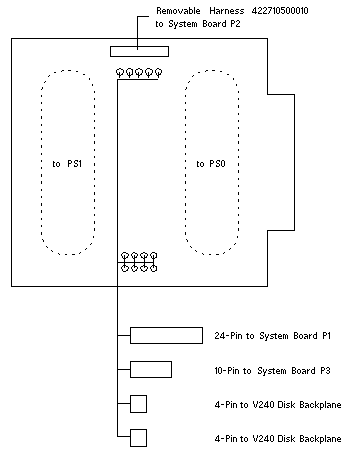

Harness 422710500010 was added to F370-5138-04 in January 2005.
(WO_29904)
- Harness 422710500010 does not have a Sun part number.
It is not included in Cable Kit 370-5137.
- The 4-Pin, 10-Pin, and 24-Pin wire harnesses are soldered.
- All wire harnesses are bundled with tie wraps.
- The 4-Pin harnesses require a 13 mm grommet in the chassis.
- The grommet does not have a Sun part number.
- Netra 240 and Sun Fire V240 use the same Printed Circuit Board.
- The Printed Circuit Board is silkscreened "Sun P/N : 370-5138".
|
