Sony APS-88
185 Watt Power Supply

Servers: Enterprise 150
Netra i 150, nfs 150
Disk Arrays: SPARCstorage MultiPack
StorEdge MultiPack

300-1283
Type A104

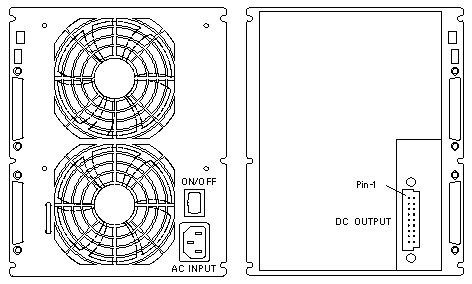

AC Input Power Supply

DC OUTPUT
PIN DESCRIPTION
PIN DESCRIPTION
1 +5Vdc 10 +5Vdc
2 +5Vdc 11 +5Vdc
3 Gnd 12 Gnd
4 Gnd 13 Gnd
5 +5V pre-charge 14 +12V pre-charge
6 Gnd 15 Gnd
7 Gnd 16 Gnd
8 +12Vdc 17 +12Vdc
9 +12Vdc 18 +12Vdc

DC Output
+5V +12V
15.0A 12.0A
