Sun System Handbook - ISO 3.4 June 2011 Internal/Partner Edition

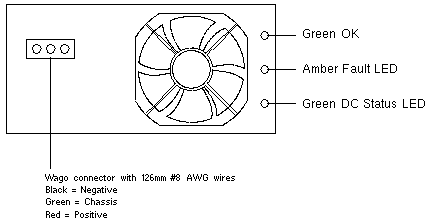

Power One D204A 1200 Watt Power Supply

<a href="../../Systems/SupportHeaders/DCPOWER_PowerOne_2305_1200W.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

300-2305

Type D204A
DC Input Power Supply
Specification 950-5437

DC Input

-48 to -75Vdc

35A

DC Output

+12V	+3.3Vsb
99.2A	3.0A

Efficiency of 300-2305

20% Load	88%
50% Load	92%
100% Load	89%
