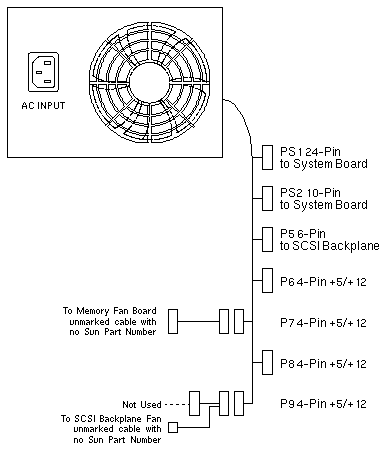

Hipro HP-W600GC3
600 Watt Power Supply

Workstations: Sun Blade 2500 (1.6GHz)

300-1667 300-1910
AC Input Power Supply
January 2005		 AC Input Power Supply
January 2006

AC Input

100-240VAC   47-63Hz   10.0A

DC Output

+3.3V +5V +12Va +12Vb -12V +5Vsb
30.0A 30.0A 17.0A 15.0A 0.8A 2.0A

Sun Blade 2500 (1.6GHz) Codename: Enchilada+

Notes

  1. The combined output of +3.3 and +5 can not exceed 200 Watts.
  2. DC Power to the ATAPI DVD-ROM is routed from the SCSI Backplane.
