FDK PEX705-40
184 Watt Power Supply

Servers: Enterprise 3x00

300-1307 300-1400

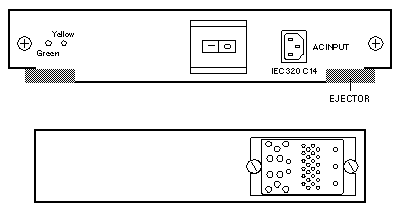

Type A109
AC Input Power Supply
Type A109
AC Input Power Supply

AC Input
VOLTAGE CURRENT FREQUENCY
100 - 240V 12A 47 - 63HZ

DC Output
+5V +5V +12V +12V MAXIMUM
CONTINUOUS
20A 5A 13A 1.5A 195 Watts

Notes

  1. One 300-1307 or 300-1400 per system is supported.
  2. Use 300-1301 as the redundant Peripheral Power Supply in the E3000.
    Use Filler Panel 540-2593 when 300-1301 is not installed.
  3. Use 300-1358 as the redundant Peripheral Power Supply in the E3500.
    Use Filler Panel 540-3815 when 300-1358 is not installed.
  4. Fan Tray 540-2757 or 300 Watt Power/Cooling Module 300-1260 provides cooling for the 184 Watt Power Supply.
  5. The 184 Watt Power Supply provides the following functions:
    AC Input power
    +5Vdc and +12Vdc peripheral tray power
    +5Vdc and +12Vdc drive precharge (non redundant)
    +3.3Vdc and +5Vdc system precharge (non redundant)
    +5Vdc redundant system power
    +12Vdc redundant power for PCM fans
    +12Vdc redundant power for E3000/E3500 Auxiliary Fan Module
    +5Vdc auxilliary power for Clock Board remote console serial port
