FDK PEX705-30
184 Watt Power Supply

Servers: Enterprise 3000
Enterprise 4x00, 5x00, 6x00

300-1301
Type A105
AC Input Power Supply

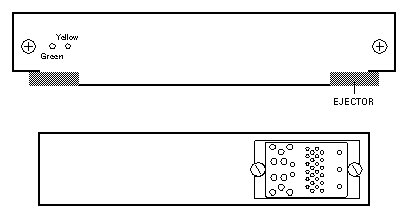

LED CODES
LED DESCRIPTION
Green PPS is operational
Yellow PPS Failure

AC Input
VOLTAGE CURRENT FREQUENCY
100 - 240V 3A 47 - 63HZ

DC Output
+5V +5V +12V +12V MAXIMUM
CONTINUOUS
20A 5A 13A 1.5A 195 Watts

Notes

  1. One 300-1301 Power Supply is supported per system.
  2. AC Input/Fan Assembly 370-1811 or 370-1812 provides cooling for the 184W Power Supply in the E4000/E4500, E5000/E5500, and E6000/E6500.
  3. Fan Tray 540-2757 or 300 Watt Power/Cooling Module 300-1260 provides cooling for the 184 Watt Power Supply in the E3000.
  4. The 184 Watt Power Supply provides the following functions:
    +5Vdc and +12Vdc peripheral tray power
    +5Vdc and +12Vdc drive precharge (non redundant)
    +3.3Vdc and +5Vdc system precharge (non redundant)
    +5Vdc redundant system power
    +12Vdc redundant power for PCM fans
    +12Vdc redundant power for E3000/E3500 Auxiliary Fan Module
    +5Vdc auxilliary power for Clock Board remote console serial port
    E4000/E4500 Keyswitch Assembly fan power
    E5000/E5500 and E6000/E6500 AC Input Box fan power
