FDK PEX690-31
300 Watt Power/Cooling Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

300-1260 300-1444
Type A106
AC Input Power Supply
Power/Cooling Module
Type A146
AC Input Power Supply
Power/Cooling Module

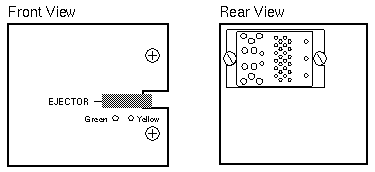

LED CODES
GREEN YELLOW DESCRIPTION
Off Off No AC Input
On Off Normal Operation
On On Fan Failure
Off On DC Output Failure

AC Input
VOLTAGE CURRENT FREQUENCY
100 - 240V 5.5A 47 - 63HZ

DC Output 300-1260
+3.3V +5V +2.0V
51A 32A 5A

DC Output 300-1444
+3.3V +5V +2.0V
55A 32A 5A

Fuse

10A 250V

Notes

  1. The Power/Cooling Module provides cooling for two adjacent slots.
  2. The Power/Cooling Module operates in redundant current share mode.
  3. Install a Power/Cooling Module or Fan Module 540-2757 in the slot above the Peripheral Power Supply in the E3000.
  4. Filler Panel 540-2593 is required when a Power/Cooling Module is not installed in the E4x00, E5x00, or E6x00.
  5. Power Supply hot-swap is not supported in a cluster configuration.
    See BugID 4245807 (6/99 - 12/99) and 4283290 (10/99 - 01/00).
