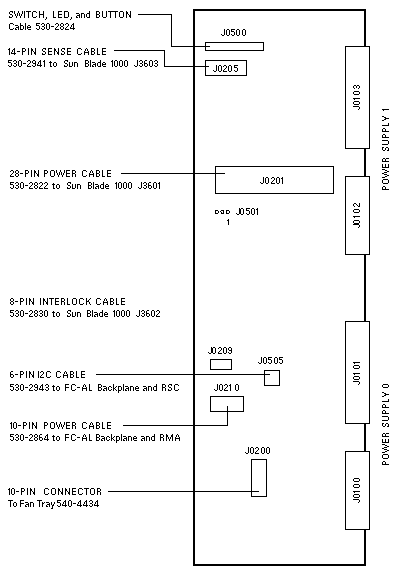

DC Power Distribution Board

Servers: Sun Fire 280R

501-5775

Sun Fire 280R Codename: Littleneck

Notes

  1. The 560W Power Supply 300-1457 is required.
  2. The 380W Power Supply 300-1449 does not provide adaquate power.
  3. Wire harness >=530-2864-04 is required to prevent 380W Power Supply 300-1449 from turning on.
  4. Connector P1 on wire harness <=530-2864-03 has 5 wires.
  5. Connector P1 on wire harness >=530-2864-04 has 6 wires.
