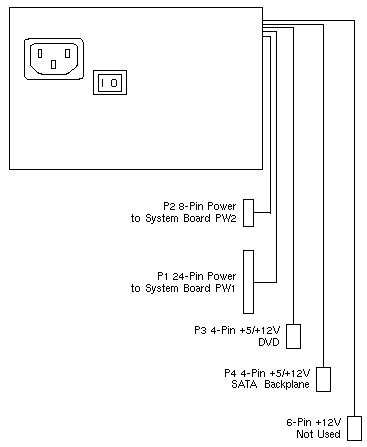

AcBel API4PC01
400 Watt Power Supply

Workstations: Ultra 20, 20 M2

300-1794 300-1950
AC Input Power Supply
Mitac 471045900024
AC Input Power Supply
Mitac unknown part#

AC Input

100-120Vac 50/60Hz 8A-4A

DC Output

+3.3V +5V +12V1 +12V2 +5sb -12
30A 30A 18A 16A 2.0A 1.0A
Maximum combined output of +3.3 and +5 is 152 Watts
Maximum combined output of +12 is 276 Watts
Maximum combined output of +3.3, +5, and +12 is 378 Watts

Ultra 20 Codename: Marrakesh
Ultra 20 M2 Codename: Munich

Notes

  1. Power supply 300-1794-02 may fail to power on when 4GB of memory is installed.
  2. This problem was corrected with 300-1794-03 in January 2006. (WO_32375)
