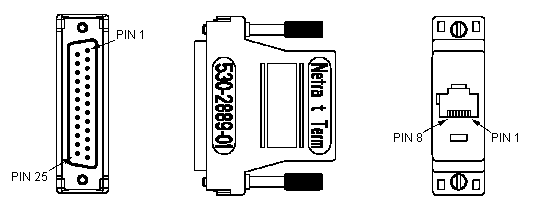

Serial: DB25P to RJ45F530-2889 | ||||||||||||||||||||||||||
| DB25P | WIRE COLOR | RJ45F |
|---|---|---|
| 5 - CTS | BLACK | 1 - RTS |
| 6 - DSR | YELLOW | 2 - DTR |
| 3 - RXD | ORANGE | 3 - TXD |
| 7 - GND | RED | 4 - GND |
| GREEN | 5 - GND | |
| 2 - TXD | BROWN | 6 - RXD |
| 20 - DTR | GREY | 7 - DSR |
| 4 - RTS | BLUE | 8 - CTS |
| | | |
|
