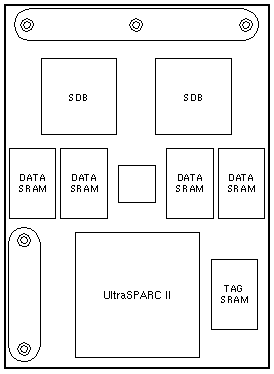

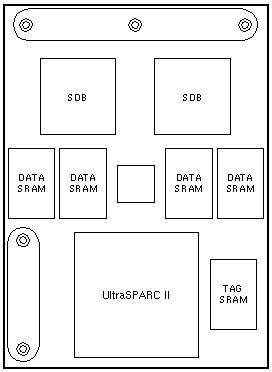

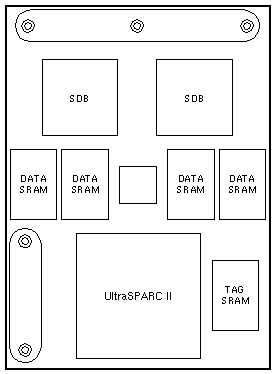

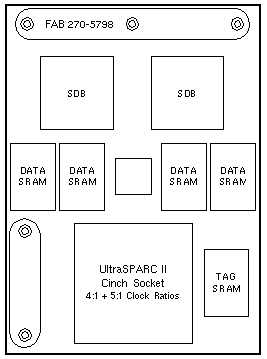

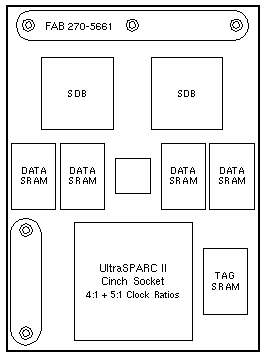

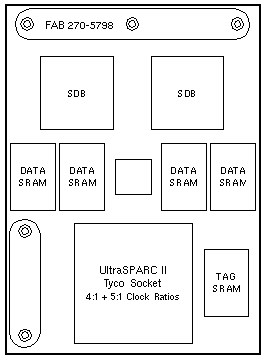

400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00

Option 2570

501-4995
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patches >=103640-06 and >=104595-03 are required.
  3. OBP 3.2 Version 18 is required.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Mixing module cache sizes on a single board requires OBP >=3.2.21.
  6. Mixing module speeds within a system is not supported.
  7. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. This module requires 100MHz CPU/Memory and I/O boards.
  3. The E3x00 supports Clocks 501-4286, 501-4946, and 501-5365.
  4. The E4x00 and E5x00 do not support Clock 501-4286.
  5. The E4x00 and E5x00 support Clocks 501-4946 and 501-5365.
  6. The E4000 and E5000 with 4MB cache module requires a 100MHz Centerplane upgrade to run at 400MHz.
  7. This module is not supported in the E6000 or E6500.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2570

501-4995
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Mixing module speeds within a system is supported.
  3. A minimum of one processor per System Board is required.
  4. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  5. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  6. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.

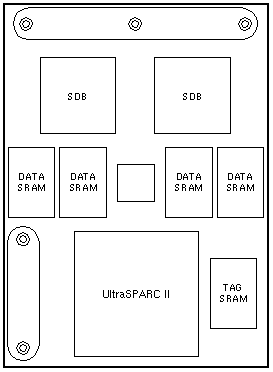

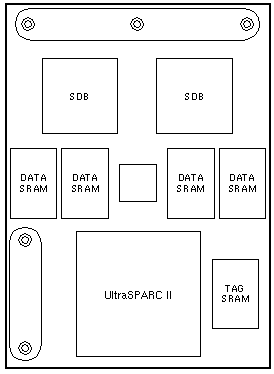

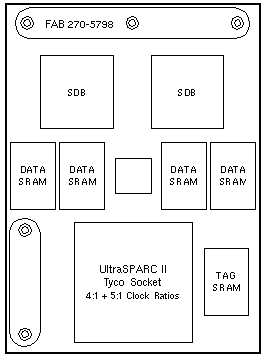

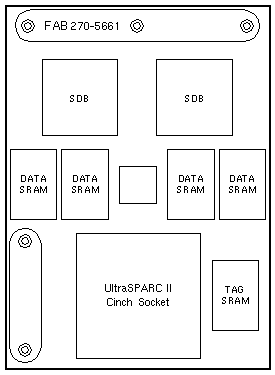

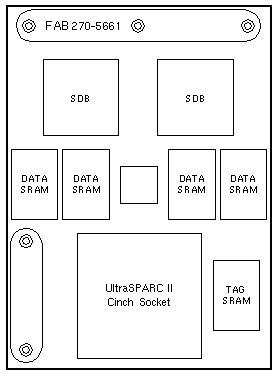

400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00

Option 2570

501-5425
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patches >=103640-06 and >=104595-03 are required.
  3. OBP 3.2 Version 18 is required.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Mixing module cache sizes on a single board requires OBP >=3.2.21.
  6. Mixing module speeds within a system is not supported.
  7. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. This module requires 100MHz CPU/Memory and I/O boards.
  3. The E3x00 supports Clocks 501-4286, 501-4946, and 501-5365.
  4. The E4x00 and E5x00 do not support Clock 501-4286.
  5. The E4x00 and E5x00 support Clocks 501-4946 and 501-5365.
  6. The E4000 and E5000 with 4MB cache module requires a 100MHz Centerplane upgrade to run at 400MHz.
  7. This module is not supported in the E6000 or E6500.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2570

501-5425
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Mixing module speeds within a system is supported.
  3. A minimum of one processor per System Board is required.
  4. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  5. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  6. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00

Option 2570

501-5585
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patches >=103640-06 and >=104595-03 are required.
  3. OBP 3.2 Version 18 is required.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Mixing module cache sizes on a single board requires OBP >=3.2.21.
  6. Mixing module speeds within a system is not supported.
  7. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. This module requires 100MHz CPU/Memory and I/O boards.
  3. The E3x00 supports Clocks 501-4286, 501-4946, and 501-5365.
  4. The E4x00 and E5x00 do not support Clock 501-4286.
  5. The E4x00 and E5x00 support Clocks 501-4946 and 501-5365.
  6. The E4000 and E5000 with 4MB cache module requires a 100MHz Centerplane upgrade to run at 400MHz.
  7. This module is not supported in the E6000 or E6500.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2570

501-5585
4MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Mixing module speeds within a system is supported.
  3. A minimum of one processor per System Board is required.
  4. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  5. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  6. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.

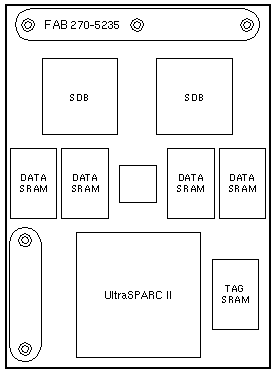

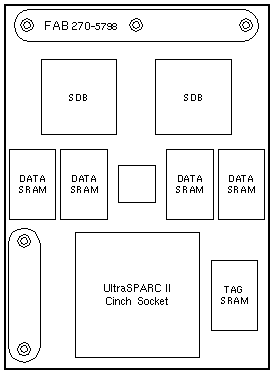

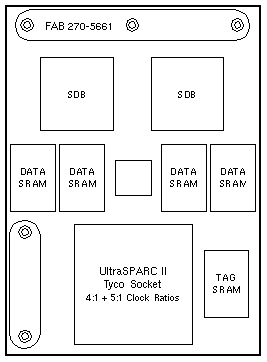

400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5235
8MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 24 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5235
8MB Cache Sapphire-Black

Notes

  1. Mixing module speeds within a system is supported.
  2. A minimum of one processor per System Board is required.
  3. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  4. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  5. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.

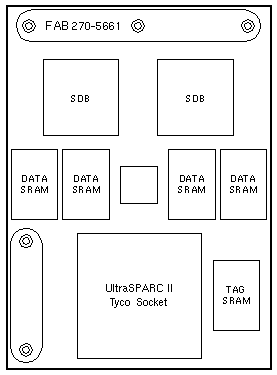

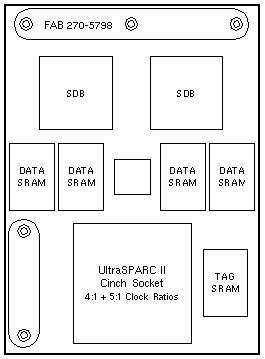

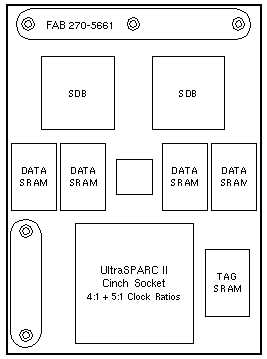

400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5661
8MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 24 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5661
8MB Cache Sapphire-Black

Notes

  1. Mixing module speeds within a system is supported.
  2. A minimum of one processor per System Board is required.
  3. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  4. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  5. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.

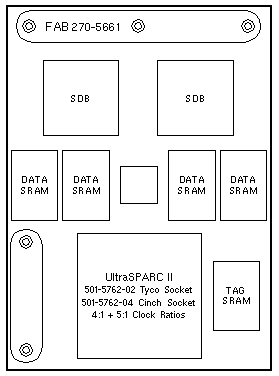

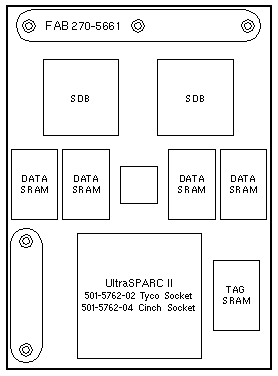

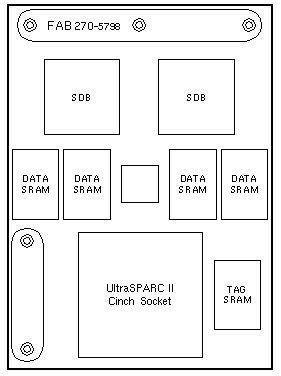

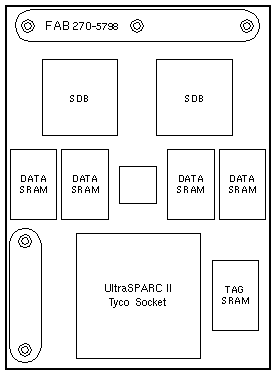

400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5762
8MB Cache Sapphire-Black

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 24 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.
  9. For more information on 501-5762, see ECO WO_16898.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5762
8MB Cache Sapphire-Black

Notes

  1. Mixing module speeds within a system is supported.
  2. A minimum of one processor per System Board is required.
  3. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  4. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  5. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.
  6. For more information on 501-5762, see ECO WO_16898.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5838
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 24 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5838
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

501-6008
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

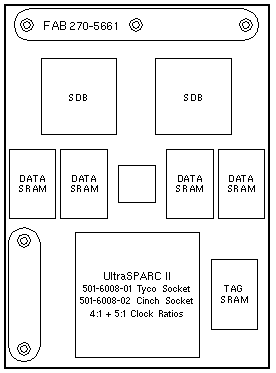

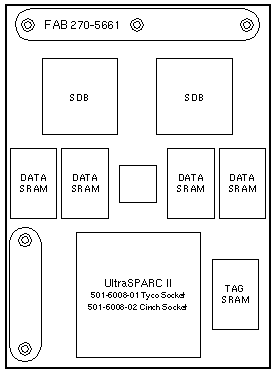

400MHz UltraSPARC II Module

Servers: Enterprise 10000

501-6008
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-6009
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=103640-27 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-6009
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5814
8MB Cache Blaze
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5814
8MB Cache Blaze
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >= 110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-5815
8MB Cache Blaze
Sony Espejo Mirrored Data SRAM
Sony Mirrored Tag SRAM

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-5815
8MB Cache Blaze
Sony Espejo Mirrored Data SRAM
Sony Mirrored Tag SRAM

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-6619
8MB Cache Blaze
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM
Replaced 501-5814 in February 2003

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-6619
8MB Cache Blaze
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM
Replaced 501-5814 in February 2003

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

501-6621
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
Replaced 501-5838 in February 2003

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

501-6621
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
Replaced 501-5838 in February 2003

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

501-6622
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM
Replaced 501-6009 in February 2003

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

501-6622
8MB Cache Sapphire-Black
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM
Replaced 501-6009 in February 2003

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.


400MHz UltraSPARC II Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2580

501-6624
8MB Cache Blaze
Sony Espejo Mirrored Data SRAM
Sony Mirrored Tag SRAM
Replaced 501-5815 in February 2003

Notes

  1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=105181-14 are required.
  3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.
  4. OBP 3.2 Version 29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  5. Use the limit-ecache-size OBP command before installing Solaris 2.5.1 and before booting Solaris 2.5.1 without patch 103640-27.
  6. Use the limit-ecache-size OBP command before installing Solaris 2.6 and before booting Solaris 2.6 without patch 105181-14.
  7. Mixing module speeds within a system is not supported.
  8. The 8-slot Gigaplane operating at 100MHz with seven CPU/Memory boards and 400MHz modules does not support N+1 Power.

Compatibility Notes

  1. Clock 501-2975 is not supported.
  2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
  3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
  4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
  5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

Reference

CPU Module Installation Guide, 806-0960.

400MHz UltraSPARC II Module

Servers: Enterprise 10000

Option 2580

501-6624
8MB Cache Blaze
Sony Espejo Mirrored Data SRAM
Sony Mirrored Tag SRAM
Replaced 501-5815 in February 2003

Notes

  1. The minimum SSP release is 3.3.
  2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
    (No patching is required for SSP 3.5.)
  3. Mixing module speeds within a system is supported.
  4. A minimum of one processor per System Board is required.
  5. Set the clock multiplier to 2:1 with the command:
    sys_clock -p two-to-one -s -i 100000000
    Caution: Using sys_clock with command line options can crash a running system.
  6. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
  7. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.

Reference:

System Board Installation and Configuration Guide, 805-7189.

  Copyright � 2011 Sun Microsystems, Inc.  All rights reserved.
 Feedback
