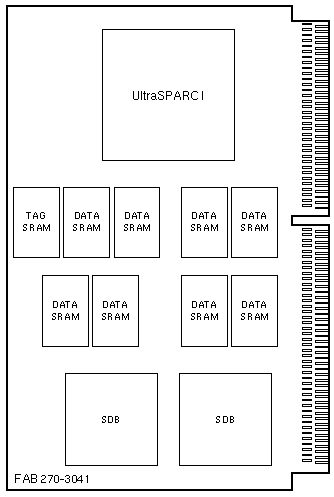

200MHz UltraSPARC I Module

Workstations: Ultra 2

Option 1188

501-3041
1MB Cache Spitfire

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Ultra 2 OBP 3.1 Beta 1 is required.
  3. Ultra 2 System Board >=501-3132-07 is required.
  4. Ultra 2 System Board 501-2487 is not compatible with Module 501-3041.
  5. Mixing module speeds is not supported.

Reference:

Ultra 2 UltraSPARC Module X-Option, 802-6079.


200MHz UltraSPARC I Module

Workstations: Ultra 2

Option 1188

501-4791
1MB Cache Spitfire

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Ultra 2 OBP 3.1 Beta 1 and System Board >=501-3132-07 is required.
  3. Ultra 2 System Board 501-2487 is not compatible with Module 501-4791.
  4. UltraSPARC is made by TI (MANUF=17) or NEC (MANUF=22).
  5. UltraSPARC on 501-4791-02 is only made by NEC (MANUF=22).
  6. Use the .ver and switch-cpu OBP commands to see the MANUF code.
  7. Mixing module cache sizes or speeds is not supported.

Reference:

Ultra 2 UltraSPARC Module X-Option, 802-6079.
