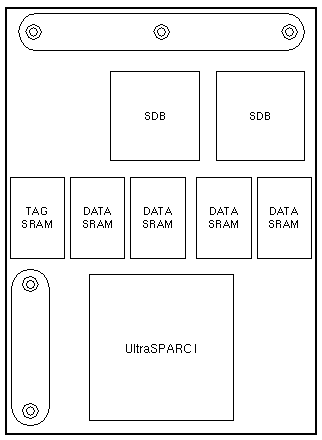

167MHz UltraSPARC Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2500

501-2941
512KB Cache Blackbird

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Mixing module cache sizes on a single board is not supported.
  3. Mixing module cache sizes within a system is supported.
  4. Mixing module speeds within a system is not supported.
  5. The speed is 167MHz with Clock 501-2975.
  6. The speed is 167MHz with Clock 501-4286/501-4946 and OBP <3.2v6.
  7. The speed is 168MHz with Clock 501-4286/501-4946 and OBP >=3.2v6.
  8. E3500-E6500 systems were not shipped with 167MHz modules.

167MHz UltraSPARC Module

Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Option 2510

501-2959
1MB Cache Blackbird

Note

  1. The minimum operating system is Solaris 2.5.1.
  2. Mixing module cache sizes on a single board is not supported.
  3. Mixing module cache sizes within a system is supported.
  4. Mixing module speeds within a system is not supported.
  5. The speed is 167MHz with Clock 501-2975.
  6. The speed is 167MHz with Clock 501-4286/501-4946 and OBP <3.2v6.
  7. The speed is 168MHz with Clock 501-4286/501-4946 and OBP >=3.2v6.
  8. E3500-E6500 systems were not shipped with 167MHz modules.
