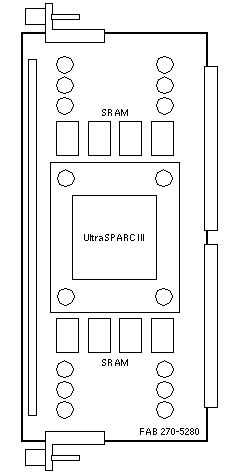

1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

Option 7310

501-6485 501-6745
8MB Cache Cheetah++ Lite
Option 7310A 596-3954
Option X7310A 595-6892-01
8MB Cache Cheetah++ Lite
Option 7310A 596-4342
501-6485-01 screened
for processor flatness

Notes

  1. The minimum OS is Solaris 8 2/02 or Solaris 9 12/02.
  2. The minimum recommended OBP is 4.5 Version 21.
    OBP 4.5 Version 19 will work on Sun Fire 280R. See FIN I0973-1.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. Modules 501-6485, 501-6745, 501-6690, and 501-6750 use the same components.
  10. Safari bus frequency margining during hot functional testing is at 152.5MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  2. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.



1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

Option 7310

501-6690 501-6750
8MB Cache Cheetah++ Lite
Option X7310A 595-7139
Rework for field upgrades only
8MB Cache Cheetah++ Lite
Option X7310A 595-7221
501-6690-01 screened
for processor flatness

Notes

  1. The minimum OS is Solaris 8 2/02 or Solaris 9 12/02.
  2. The minimum recommended OBP is 4.5 Version 21.
    OBP 4.5 Version 19 will work on Sun Fire 280R. See FIN I0973-1.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. Modules 501-6485, 501-6745, 501-6690, and 501-6750 use the same components.
  10. Safari bus frequency margining during hot functional testing is at 155.0MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  2. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.



1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

501-6805
8MB Cache Cheetah++ Lite
screened for processor flatness

Notes

  1. The minimum OS is Solaris 8 12/02 or Solaris 9 12/02.
  2. The minimum OBP is 4.5 Version 19.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. The 501-6805 was released and structured by WO_28067 in December 2003.
  10. Safari bus frequency margining during hot functional testing is at 152.5MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  2. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.
