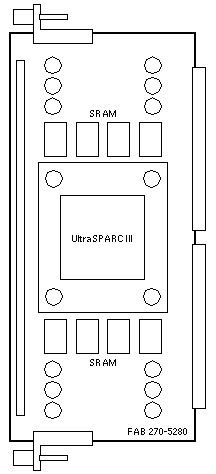

1050MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000

Option 7017

501-6254
8MB Cache Cheetah+

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. Support for 1GHz processors is in OBP 4.5 Version 10.
  3. The minimum recommended OBP is 4.5 Version 16.
  4. Mixing UltraSPARC III Cu module speeds is not supported.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. If only one CPU module is installed, it must be in Slot 0.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  2. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.



1050MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000

Option 7017

501-6396 501-6749
8MB Cache Cheetah+ 8MB Cache Cheetah+
501-6396-04 screened
for processor flatness

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. Support for 1GHz processors is in OBP 4.5 Version 10.
  3. The minimum recommended OBP is 4.5 Version 16.
  4. Mixing UltraSPARC III Cu module speeds is not supported.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. If only one CPU module is installed, it must be in Slot 0.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.

Release Notes

  1. This module was released by WO_23838 in May 2002.
  2. This module was added to systems and options in March 2003.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  2. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.
