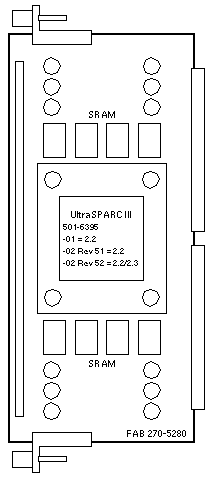

1015MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R

Option 7064

501-6395 501-6748
8MB Cache Cheetah+ 8MB Cache Cheetah+
501-6395-03 screened
for processor flatness

Note: Sun Fire 280R requires Fan Tray 540-5088
(see Notes below).

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. Support for 1GHz processors is in OBP 4.5 Version 10.
  3. The minimum recommended OBP is 4.5 Version 16.
  4. Mixing UltraSPARC III Cu module speeds is not supported.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. Sun Fire 280R systems need Fan Tray X9820A (540-5088) to support 501-6395.
    Systems built and shipped after December 4, 2001, will include the fan tray.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.
  9. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.

References

  1. Sun Fire 280R Server Service Manual, 806-4807.
  2. Sun Fire 280R UltraSPARC III Cu Installation Guide, 816-2726.
  3. Sun Blade 1000 and Sun Blade 2000 Service Manual, 816-3217.
  4. Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu CPU Module Installation Guide, 816-3221.
