SM61 SuperSPARC Module

Workstations: SPARCstation 20

501-2571
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. This unreleased module was shipped by the Advanced Products Group.
  5. The maximum MBus speed of the MXCC is 40MHz.

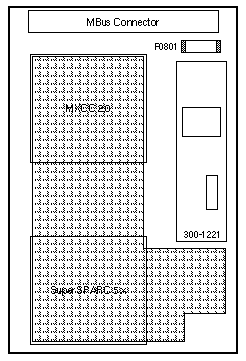

  6. The 5A Fuse at F0801 is not field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20
Servers: SPARCserver 6x0MP

Options 1168 / 1174

501-2613
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2613 is not tested or approved for use in the SS1000.
  6. The 22W DC-DC Power Supply is not field replaceable.
  7. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20
Servers: SPARCserver 1000

Options 1168 / 1171

501-2519
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. The SS1000 requires OBP 2.18 to support MXCC 3.x.
  4. Mixing different module types is not supported.
  5. The maximum MBus speed of the MXCC is 50MHz.
  6. The maximum XDBus speed of the MXCC is 50MHz.
  7. The 22W DC-DC Power Supply is not field replaceable.
  8. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20

501-2769
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2769 is not tested or approved for use in the SS1000.
  6. The 501-2769 is not compatible with the SS1000E Control Board.
  7. The 22W DC-DC Power Supply is not field replaceable.
  8. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20
Servers: SPARCserver 6x0MP

501-2752
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2752 is not compatible with the Sun4d XDBus.
  6. OBP 2.14v3 was used to test the 501-2752 in the SS600MP.
  7. The 22W DC-DC Power Supply is not field replaceable.
  8. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20

501-2782
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2782 is not tested or approved for use in the SS1000.
  6. The 22W DC-DC Power Supply is not field replaceable.
  7. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61 SuperSPARC Module

Workstations: SPARCstation 10, 10SX, 20
Servers: SPARCserver 6x0MP, 1000

Options 1168 / 1171

501-2825
60MHz

Notes

  1. The minimum operating system is Solaris 1.1.1 Version B.
  2. If two modules are installed, the minimum OS is Solaris 2.3.
  3. Mixing different module types is not supported.
  4. The SS1000 requires OBP 2.18 to support MXCC 3.x.
  5. The maximum MBus speed of the MXCC is 50MHz.
  6. The maximum XDBus speed of the MXCC is 50MHz.
  7. OBP 2.14v3 was used to test the 501-2825 in the SS600MP.
  8. The 22W DC-DC Power Supply is not field replaceable.
  9. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.
