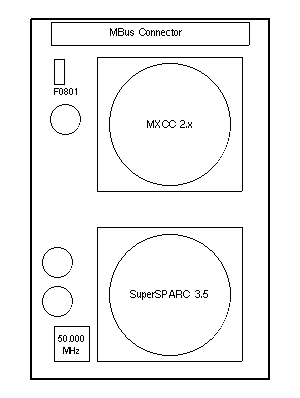

SM51-2 SuperSPARC Module

Servers: SPARCcenter 2000

Option 1165

501-2353
50MHz

Notes

  1. The minimum operating system is Solaris 2.2 (SunOS 5.2).
  2. The SC2000 requires Boot PROM 2.11.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SC2000 Control Board.
  6. System Board 501-1866-xx can only access 1MB of cache.
  7. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51-2 SuperSPARC Module

Servers: SPARCcenter 2000

Option 1165

501-2601
50MHz

Notes

  1. The minimum operating system is Solaris 2.2 (SunOS 5.2).
  2. The SC2000 requires Boot PROM 2.11.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SC2000 Control Board.
  6. System Board 501-1866-xx can only access 1MB of cache.
  7. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51-2 SuperSPARC Module

Servers: SPARCcenter 2000

Option 1165

501-2618
50MHz

Notes

  1. The minimum operating system is Solaris 2.2 (SunOS 5.2).
  2. The SC2000 requires Boot PROM 2.18.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SC2000 Control Board.
  6. System Board 501-1866-xx can only access 1MB of cache.
  7. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51-2 SuperSPARC Module

Servers: SPARCcenter 2000

501-2755
50MHz

Notes

  1. The minimum operating system is Solaris 2.2 (SunOS 5.2).
  2. The SC2000 requires Boot PROM 2.18.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SC2000 Control Board.
  6. System Board 501-1866-xx can only access 1MB of cache.
  7. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.
