Sun SPARC Enterprise M4000/M5000

Options SELX2A1Z / SELX2B1Z / SELX2E1Z / SELX2B2Z
Options SELX2C1Z / SELX2F2Z / SELX2FX2Z


371-1899 371-1900 371-4236
1GB 1-Rank
DDR2-533/667
512Mbit SDRAM
4GB Option = SELX2E1Z
8GB Option = SELX2A1Z
L
2GB 2-Rank
DDR2-533/667
512Mbit SDRAM
16GB Option = SELX2B1Z
2GB 1-Rank
DDR2-667
1Gbit SDRAM
16GB Option = SELX2B2Z
8GB Option = SELX2F2Z
8GB Option = SELX2FX2Z
371-1901 371-4476
4GB 2-Rank
DDR2-667
1Gbit SDRAM
32GB Option = SELX2C1Z
8GB 2-Rank
DDR2-667
2Gbit SDRAM
64GB Option = SELX2D1Z

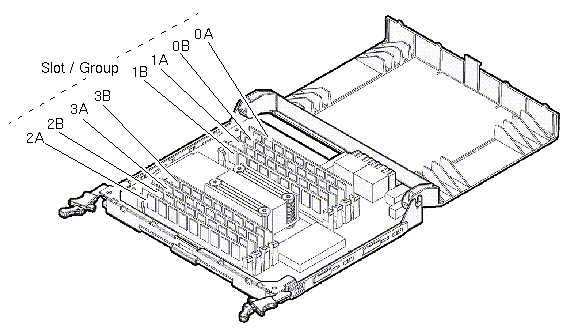

Memory Board 541-0545 (cover opened)

Notes

  1. 1-Rank and 2-Rank DIMMs cannot be mixed in the same memory group.
  2. For further information, see How To article 1019113.1.
  3. Use the XSCF showhardconf command to display the DIMM Type.
    The DIMM Type field shows the Size (1/2/4/8) and Rank (A=1-Rank or B=2-Rank).
    See Chapter 11 in the Service Manual.

References

  1. SPARC Enterprise M4000/M5000 Servers Service Manual, 819-2210.
  2. SPARC Enterprise M4000/M5000 Servers Installation Guide, 819-2211.
  3. Refer to M4000/M5000 Hardware Documentation for Product Notes for different XCP versions.
