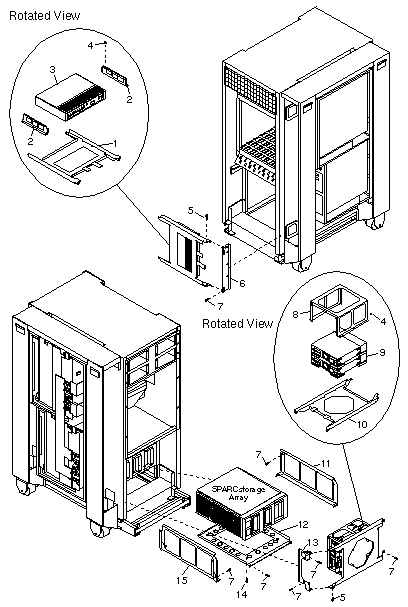

| CODE |
PART # |
DESCRIPTION |
| 1 |
340-3197 |
Annex Mounting Tray |
| 2 |
340-2703 |
Annex Mounting Bracket |
| 3 |
370-1434 |
Xylogics Micro Annex Terminal Concentrator |
| 4 |
240-1373 |
M4 Nut |
| 5 |
240-1372 |
M4 0.7 x 10 mm Screw |
| 6 |
340-3196 |
Annex Mounting Tray Hinge Bracket |
| 7 |
240-1953 |
#10-32 x 1/2" Screw |
| 8 |
340-2200 |
Mounting Bracket |
| 9 |
- |
Desktop Disk Pack or SPARCstorage UniPack |
| 10 |
340-3199 |
Mounting Clamp |
| 11 |
340-3235 |
Rack Mounting Bracket, Right |
| 12 |
340-3239 |
Chassis Mounting Bracket |
| 13 |
340-3198 |
Hinge Bracket |
| 14 |
240-2248 |
M6 1.0 x 10 mm Screw |
| 15 |
340-3237 |
Rack Mounting Bracket, Left |
| NS |
150-1785 |
50-Pin Single-Ended SCSI Terminator |
| NS |
260-3425 |
Sun Logo |
| NS |
261-5706 |
SPARCcluster 2000 Nameplate |
| NS |
530-1343 |
IEC 320 - Reverse IEC 320 Power Cord, 240V |
| NS |
530-1351 |
IEC-320-c13 to NEMA 6-15p Power Cord, 10A/250V, 2M |
| NS |
530-1793 |
50-Pin to 50-Pin SCSI-2 Cable, 80 cm |
| NS |
530-1836 |
50-Pin to 50-Pin SCSI-2 Cable, 2.0M |
| NS |
530-2115 |
68-Pin to 50-Pin SCSI-2 Cable, 1.2M |
| NS |
530-2228 |
68-Pin to 50-Pin SCSI-2 Cable, 2.0M |
| NS |
530-2149 |
PDB Back-to-Back Ethernet Cable, 1.0M |
| NS |
530-2150 |
PDB Back-to-Back Ethernet Cable, 5.0M |
| NS |
530-2151 |
PDB RJ45-to-DB25 Serial Cable, 1.0M |
| NS |
530-2152 |
PDB RJ45-to-DB25 Serial Cable, 5.0M |
|
802-1720 |
SPARCcluster PDB System Service Manual |
