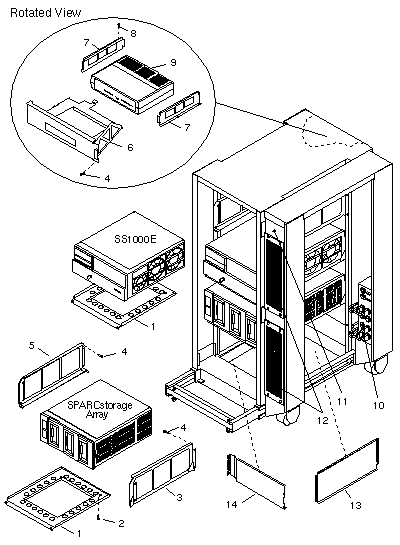

| CODE |
PART # |
DESCRIPTION |
| 1 |
340-3239 |
Chassis Mounting Bracket |
| 2 |
240-2248 |
M6 1.0 x 10 mm Screw |
| 3 |
340-3235 |
Rack Mounting Bracket, Right |
| 4 |
240-1953 |
#10-32 x 1/2" Screw |
| 5 |
340-3237 |
Rack Mounting Bracket, Left |
| 6 |
340-2702 |
Annex Mounting Tray |
| 7 |
340-2703 |
Annex Mounting Bracket |
| 8 |
240-1372 |
M4 0.7 x 10 mm Screw |
| 9 |
370-1434 |
Xylogics Micro Annex Terminal Concentrator |
| 10 |
370-1155 |
AC Power Sequencer, 230V (obsolete) |
| 10 |
370-1156 |
AC Power Sequencer, 240V (obsolete) |
| 10 |
300-1263 |
AC Power Sequencer, 230V |
| 10 |
300-1264 |
AC Power Sequencer, 240V |
| 11 |
540-2393 |
Keyswitch Assembly |
| 12 |
370-1983 |
Fan Assembly |
| 13 |
340-3300 |
Side Air Baffle, 221 x 528 mm |
| 13 |
340-3302 |
Top Side Air Baffle, 148 x 528 mm |
| 13 |
340-3318 |
Bottom Side Air Baffle, 198 x 522 mm |
| 14 |
340-3299 |
Front Air Baffle, 221 x 466 mm |
| 14 |
340-3301 |
Top Front Air Baffle, 162 x 466 mm |
|
|
|
| NS |
260-3425 |
Sun Logo |
| NS |
261-5705 |
SPARCcluster 1000 Nameplate |
| NS |
340-2904 |
Annex Mounting Tray Hinge Bracket |
| NS |
530-1343 |
IEC 320 - Reverse IEC 320 Power Cord, 240V |
| NS |
530-1351 |
IEC-320-c13 to NEMA 6-15p Power Cord, 10A/250V, 2M |
| NS |
530-2149 |
PDB Back-to-Back Ethernet Cable, 1.0M |
| NS |
530-2150 |
PDB Back-to-Back Ethernet Cable, 5.0M |
| NS |
530-2151 |
PDB RJ45-to-DB25 Serial Cable, 1.0M |
| NS |
530-2152 |
PDB RJ45-to-DB25 Serial Cable, 5.0M |
| NS |
530-2393 |
Keyswitch Cable |
|
802-1720 |
SPARCcluster PDB System Service Manual |
