SCSI RAID Controller (SRC/P)

A25 / A26 / A33 / A34 / A35 / Netra 20

Options 6542 / 6602

375-0078
DPT SmartRAID Millennium PM3755U2B w Battery Backup Module BB4050 w SCSI Expansion Module SX4055U2-2 w 64MB ECC EDO DIMM DM4050-64 3.3/5V 64Bit 33MHz

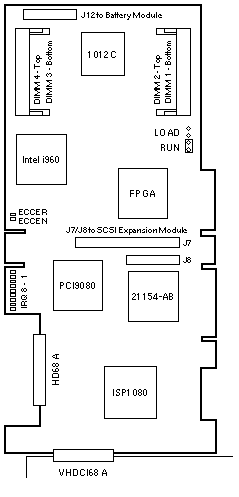

SRC/P 375-0078	SmartRAID Millennium DPT PM3755U2B No Sun part number

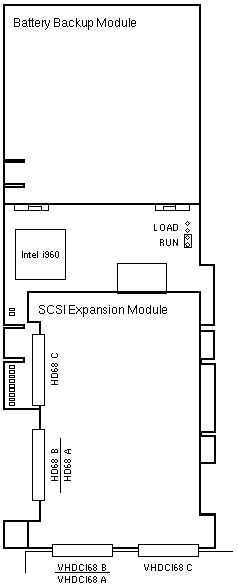

Battery Backup Module DPT BB4550 375-0082 64MB DIMM DPT DM4050-64 No Sun part number	SCSI Expansion Module DPT SX4055U2-2 No Sun part number

Notes

1. The minimum operating system is Solaris 2.6 Hardware: 3/98.
2. The E250 and E450 require OBP >=3.12.
3. The SRC/P requires a 64-Bit PCI slot.
4. Internal Option 6602 is only available for the E450 (A25).
5. The maximum high-speed disk cache memory is 256MB.

Cable Notes

1. The A25 requires internal 8-Disk Backplane Cable 530-2744.
2. The 68-pin VHDCI connector on Cables 530-2452-01 and 530-2453-01 is centered in the housing.
3. The 68-pin VHDCI connector on Cables 530-2452-02 and 530-2453-02 is offset in the housing.
4. Cables with centered VHDCI connectors are not usable at the same time on the A and B ports, due to the thickness of the connector shell. The shell thickness was reduced on cables 530-2452-02 and 530-2453-02.
5. Cable 530-2453-02 was released in May 1999.
6. Cable 530-2452-02 was released in May 2001.

References

1. SRC/P Installation Guide, 805-7752.
2. SRC/P User's Guide, 805-6768.
3. E450 Internal RAID Storage Option Installation Guide, 805-6765.
