SCSI (SSHA)

Codename: Sport8

Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20 / A11 / A12 / A14

Option 1055

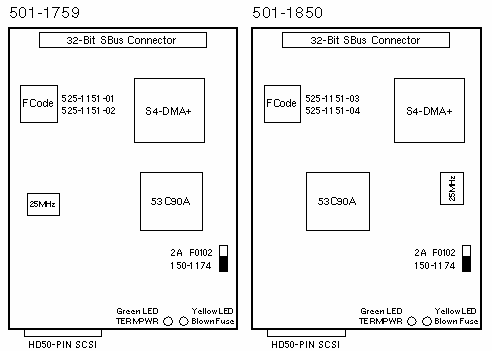

501-1759 501-1850
FCC-A/VCCI-1
15/30/40/50/60/65/75		 FCC-B/VCCI-2
15/30/40/50/60/65/75
SS4/SS5/SS10/SS20
A11/A12/A14

Power

0.6 Amps @ +5Vdc
3.0 Watts

Notes

  1. The Sun-4/60 CPU requires Boot PROM 1.3 Version 3.
  2. This card is not compatible with Slot-3 of the Sun-4/60/65.
  3. Disable the SS10 onboard Ethernet if two or more SCSI host adapters are installed. Use an SBE/S or FSBE/S for Ethernet.
  4. FCode on SSHA 501-1759 is not compatible with the SS10, SS20, A11, A12, and A14. The 501-1759 was discontinued in March 1991.
  5. The SS4, SS5, SS10, SS20, A11, A12, and A14 require 501-1850-02. Refer to BugID 1264704.
  6. Add the following to /etc/system on Solaris 2.6:
    forceload: drv/dma
    Refer to BugID 4078972.

Reference

SBus SCSI Host Adapter Installation Guide for SPARCstations, 800-5385.
