| CODE |
PART # |
DESCRIPTION |

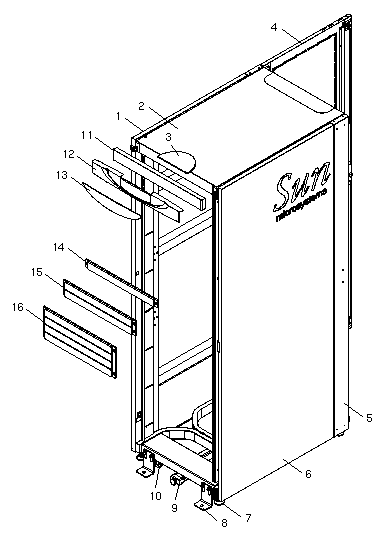

1
1 |
595-6712
596-3497 |
Sun Rack 900, Option SR9-XKL038A-IP
Sun Rack 900, Option SR9-KL038A-IP |
1
NS
NS
NS
NS
2
3 |
540-5352
240-4254
345-1416
345-1417
345-5034
370-5564
540-5479 |
Cabinet Assembly
 Key
T-Wrench
1/4" × 50 mm #3 Phillips Bit
13 mm / 19 mm Wrench
Top Panel Assembly
 Backlight Assembly |
1
4
5
6
7
8
9
10 |
370-5034
None
None
None
None
None
None
None |
Cabinet Frame
Rear Door, 612-693910H
Extension Side Panel, 612-693912D
Side Panel, 612-691945K
Leveler Foot, 612-695337
Shipping Bolt Down Bracket, 612-694274E
Antitip Bar, 612-694371G
Heavy Duty Caster, 612-598562 |
| 11 |
330-3554 |
Top Hinge Cover |
| 12 |
540-5478 |
Logo Holder Assembly |
| 13 |
330-3555 |
Logo Insert |
NS
14
15
16 |
595-6714
540-5349
540-5350
540-5351 |
Filler Panel Kit, Option 6826
1RU Filler Panel
2RU Filler Panel
4RU Filler Panel |
NS
- |
595-6715
180-2005 |
Domestic AC Power Cable, Option 6828
Domestic AC Power Cable, 2.5M, NEMA L6-20P |
NS
- |
595-6716
180-2004 |
International AC Power Cable, Option 6829
International AC Power Cable, 2.5M, IEC309 |
|
816-6386
816-6387 |
Sun Rack 900 Installation Manual
Sun Rack 900 Service Manual |
| PART # |
DESCRIPTION |
595-6717
340-7605
340-7607
340-7608
816-7771 |
StorEdge T3 4U Mounting Kit, Option 6836
Adapter Rail
Left Rail
Right Rail
T3 Rack Mount Installation Manual |
595-6718
340-7605
340-7587
340-7588
816-7771 |
StorEdge T3 7U Mounting Kit, Option 6837
Adapter Rail
Left Rail
Right Rail
T3 Rack Mount Installation Manual |
595-6719
340-7595
340-7596
340-7597
340-7606
816-7772 |
StorEdge A1000/D1000 Mounting Kit, Option 6838
Left Rail
Right Rail
Tray
Adapter Rail
A1000/D1000 Rack Mount Installation Manual |
595-6720
340-7652
340-7653
340-7654
340-7655
816-7769 |
StorEdge D240 Mounting Kit, Option 6839
Left Rail
Right Rail
Adapter
Front Mouting Bracket
D240 Rack Mount Installation Manual |
595-6721
340-7635
340-7636
370-5622
816-7774 |
Netra 20 Mounting Kit, Option 6845
Front Bracket
Rear Bracket
Rack Slide
Netra 20 Rack Mount Installation Manual |
595-6722
340-7638
340-7639
340-7641
340-7642
340-7643
370-5622
816-7773 |
Netra t 1400 Mounting Kit, Option 6846
Front Bracket
Rear Bracket
Nut Plate Bracket
Left Adapter Bracket
Right Adpater Bracket
Rack Slide
Netra t 1400 Rack Mount Installation Manual |
595-6723
340-7561
340-7562
340-7563
340-7575
816-7776 |
RTU Mounting Kit, Option 6847
Bottom Support Bracket
Bottom Support Rail
Top Support Bracket
Top Support Rail
RTU Rack Mount Installation Manual |
595-6724
340-7630
340-7631
340-7632
340-7633
340-7634
816-7775 |
Sun Fire 4800 Mounting Kit, Option 6848
Top Bracket
Bottom Bracket
Left Bracket
Right Bracket
Front Bracket
Sun Fire 4800 Rack Mount Installation Manual |
595-6725
240-4252
240-4298
370-5647
540-5478
816-7767 |
Front Door Kit, Option 6825
Hinge Pin
Latch Bracket
Front Door
Logo Holder Assembly
Front Door Installation Manual |
595-6727
370-5653
370-5654
816-7768 |
EMI Containment Kit, Option 6835
Top EMI Panel
Bottom EMI panel
EMI Kit Installation Manual |
595-6741
300-1546
370-4946
370-4948
370-5651
370-5652
595-6726
180-2007
816-7766 |
Power Distribution System, Option 6849
Dual Input, 24 Output AC Power Sequencer
Dual Input, 24 Output AC Power Strip
AC Inlet Power Panel
Upper Power Cords, Inlet 180-2043 + Outlet 180-2045
Lower Power Cords, Inlet 180-2044 + Outlet 180-2046
Power Jumper Cable 20 Pack, Option 6827
10A Power Jumper Cable
Power Distribution System Installation Manual |
