Seagate ST320420A (20.4GB)

3 1/2" 7200 RPM Ultra ATA/66

A21 / A22 / A36
Option 6174

370-4327
Barracuda ATA II/Vail

Bottom View

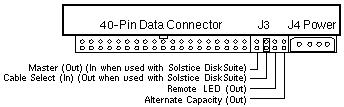

End View

Notes:

  1. Either a Floppy or a front Disk Drive can be installed in the Ultra 5.
  2. The Ultra 5 front Disk Mounting Bracket replaces the Floppy Bracket.
  3. The Ultra 5 front Disk Mounting Bracket has no Sun part number.
  4. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

  1. Ultra 5/10 Service Manual, 805-0423.
  2. Ultra 5 Service Manual, 805-7763.
  3. Ultra 10 Service Manual, 805-7764.
  4. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-3085.
  5. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-7115.
