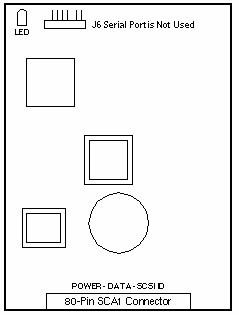

Conner CP30548 (535MB)

3 1/2" 5400 RPM Single Ended Fast SCSI

SS4 / SS5 / SS20 / A11 / A12 / A14
Options 589 / 597

370-1425 540-2403 540-2443 540-2631
1" Height 2.1GB Disk Card FRU
w Bkt 540-2412		 SS5/SS20 FRU
w Bkt 540-2570		 SS5/SS20 FRU
w Bkt 540-2570

Notes

  1. The 535MB drive supports Tagged Queuing with Solaris 2.x.
  2. The addresses are preset to 0, 1, 2, and 3 on Disk Card 501-2066.
  3. The addresses are preset to 3 and 1 in the SS5 and SS20.
  4. The addresses are preset to 0 and 1 in the A11, A12, and A14.
  5. Do NOT daisy chain System Board 0 to the disk card if disk drives are installed on the internal SS1000 SCSI Bus.
  6. The disk card mounting brackets are not interchangeable between the Seagate and Conner disk drives.
  7. System upgrades to A11, A12, and A14 may use this drive.

References

  1. 2.1-Gbyte Disk Card Installation Manual, 801-2196.
  2. 535 Mbyte Disk Drive Installation Manual, 801-6559.
